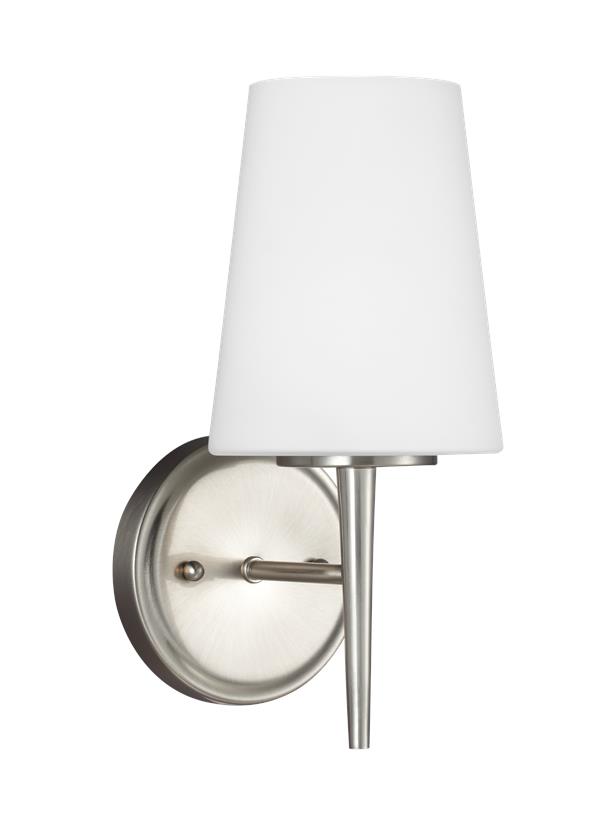

4140401EN3-962: One Light Wall / Bath Sconce



Collection:  Driscoll


Supplied with 6.5-inches of wire

An ENERGY STARĀ® qualified lighting fixture uses LED bulbs to offer savings without sacrificing performance, features and comfort

To achieve the most flattering mirror light, choose LED bulbs with a Color Rendering Index of 90, and a warm color maximum temperature of 3500K

Install a dimmer switch for a warm glow effect and easily change the look and feel of the room

Designed for damp and dry environments allowing for occasional water moisture, such as bathrooms, covered patios or porches

UPC #:785652045363

Finish:   Brushed Nickel (962)

Dimensions:

Width: 5 1/4''
Height: 11 3/4''
Weight: 2.1 lbs.
Extends: 6 3/4''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  1 - LED Medium A19 9w Max. 120v - included
Features:
  • This fixture features mouth-blown glass and slight variations are an inherent part of the handcrafting process.
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Steel - Brushed Nickel
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (4-4040)
Trilingual (English, Spanish, and French) (4140401 4440402 4440403 4440404)
Trilingual (English, Spanish, and French) (990W4_4040_-DRI)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Glass Glass Cased Opal Etched 1 G560110-607     6 1/2 5 1/16       3 11/16
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate     8 3/4
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4140401-05 785652045363  12.4 8.75 7.5 0.471 2.8 0 Yes
Master Pack 4140401EN3-962 10785652045360
NJ Pallet   162    48 40 72.5 80.556 453.6 No
NV Pallet   162    48 40 72.5 80.556 453.6 No
