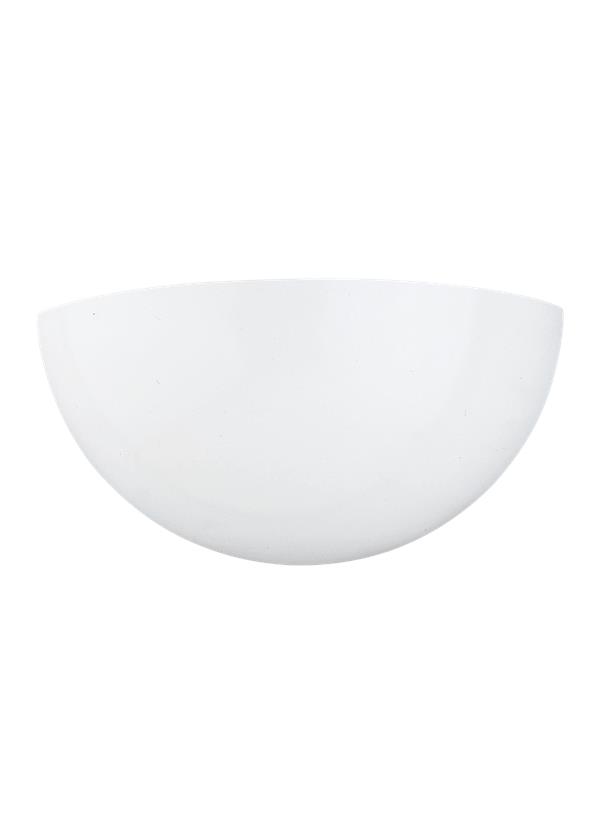

4138EN3-15: One Light Wall / Bath Sconce


Collections: Edla (Primary)
Decorative Wall Sconce


Simple white LED wall sconce with white acrylic diffuser, functions efficiently.

Wall or bath LED fixture finished in white with white acrylic diffuser.

Featured in the decorative Wall Sconce collection

1 A19 Medium 9.3 watt light bulb

Fixture is supplied with 1 light bulb

white plastic acrylic diffuser

ENERGY STAR® Qualified

UPC #:785652048937

Finish:   White (15)
Dimensions:

Width: 13 3/4''
Height: 6 3/4''
Weight: 1.1 lbs.
Extends: 5 1/4''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  1 - LED Medium A19 9w Max. 120v - included
Features:
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Steel - Undefined
Safety Listing:
  Safety Listed for Damp Locations
Safety Listed for Damp Locations
Instruction Sheets:
English (HC-330)
French (F-007)
Trilingual (English, Spanish, and French) (4138)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Diffuser Acrylic White Plastic 1   5 13 3/4 6 11/16
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 6 1/16  12 13/16      4
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4138EN3-15 1  785652048937  14.25 5.5 7.25 0.329 1.5 0 Yes
Master Pack 4138EN3-15 3  10785652048934  17.25 15 8 1.198 5.9 0 Yes
NJ Pallet   144    48 40 77 85.556 318.6 No
NV Pallet   144    48 40 70 77.778 318 No
