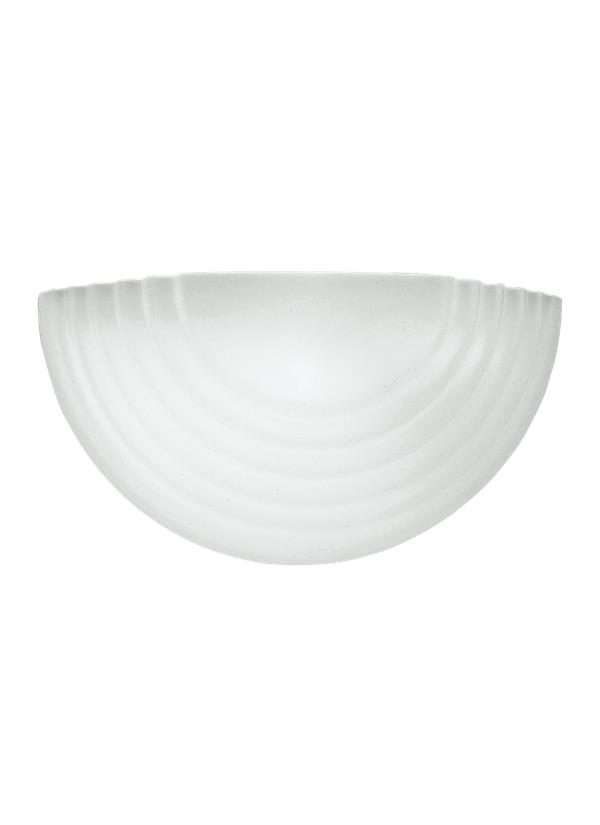

4123EN3-15: One Light Wall / Bath Sconce


Collections: Step Glass (Primary)
Decorative Wall Sconce


Wall or Bath LED Fixture for Any Room Comes in White Finish and White Glass with Etched Curves for Style.

Featured in the decorative Wall Sconce collection

1 A19 Medium 9.3 watt light bulb

Fixture is supplied with 1 light bulb

Satin white glass shade

ENERGY STAR® Qualified

UPC #:785652048869

Finish:   White (15)
Dimensions:

Width: 10 3/4''
Height: 5 1/4''
Weight: 1.7 lbs.
Extends: 4 1/4''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  1 - LED Medium A19 9w Max. 120v - included
Features:
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Steel - Undefined
1 Housing - Glass - Undefined
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (HC-330)
French (F-007)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Satin White 1 5226-33
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 5  10  1/4    2 1/2
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4123EN3-15 1  785652048869  9 7 7 0.255 1.9 0 Yes
Master Pack 4123EN3-15 3  10785652048866  24 13 8 1.444 9.82 0 Yes
NJ Pallet   150    48 40 72 80 490 No
NV Pallet   150    48 40 72 80 490 No
