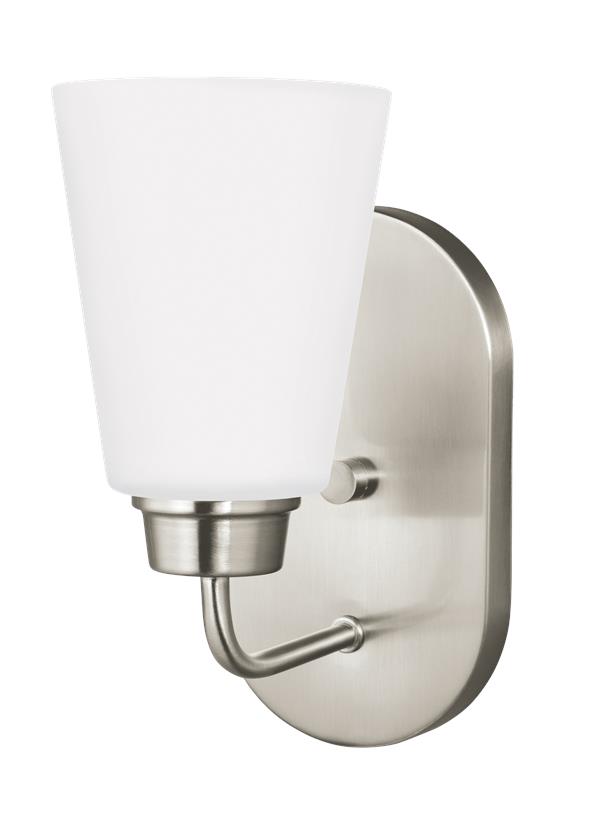

4115201EN3-962: One Light Wall / Bath Sconce

	Collection: Kerrville
	Featured in the decorative Kerrville collection
	1 A19 Medium 9.3 watt light bulb
	Fixture is supplied with 1 light bulb
	Satin Etched glass shade
	ENERGY STAR® Qualified
	UPC #:785652048821
	Finish: Brushed Nickel (962)

Dimensions:


Width:	4 5/8''
Height:	9 5/8''

Weight:

1.9 lbs.

Extends:

6 3/4''

Wire:

6 1/2'' (color/Black/White)

Mounting Proc.:

Single Cap Nut

Connection:

Mounted To Box

Watts:

Lumens:

800

Bulb Temp:

3000 °K

Bulbs:

1 - LED Medium A19 9w Max. 120v - included

Features:

LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
Fixture may be mounted in the up or down position
Meets Title 24 energy efficiency standards
Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.

Material List:

1 Body - Steel - Brushed Nickel

Safety Listing:

Safety Listed for Damp Locations

Instruction Sheets:

Trilingual (English, Spanish, and French) (4115201)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Shade

Glass

Satin Etched

G560218-619

5 3/8

4 3/8

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Back Plate	8	4 5/8	7/8		5 5/8	4

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97512S	Frosted		A19	Medium	9	9	120v	15000	800 230°	3000	90

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	4115201EN3-962	1	785652048821	10.5	9	6.5	0.355	2.4	0	Yes
Master Pack	4115201EN3-962	4	10785652048828	18	14	11.5	1.677	10.9	0	Yes
NJ Pallet		160		48	40	77	85.556	436		No
NV Pallet		160		48	40	77	85.556	436		No
