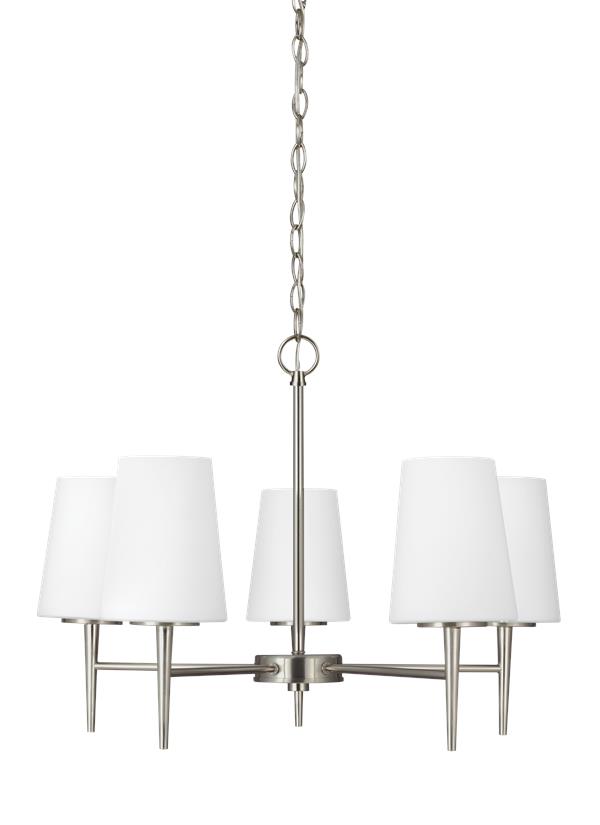

3140405EN3-962: Five Light Chandelier

	Collection: Driscoll
	Supplied with pre-laced, adjustable 10-feet of wire and 3-feet of chain for a customized look
	An ENERGY STAR® qualified lighting fixture uses LED bulbs to offer savings without sacrificing performance, features and comfort
	Install a dimmer switch for a warm glow effect and easily change the look and feel of the room
	3-Year manufacturer warranty
	ENERGY STAR® Qualified
	UPC #:785652045479
	Finish: Brushed Nickel (962)

Dimensions:


Diameter:	25 1/4''
Height:	17 3/4''

Weight:

10.6 lbs.

Overall Height:

56''

Wire:

120'' (color/Clear Silver)

Chain:

36''

Mounting Proc.:

Screw Collar - Chain

Connection:

Mounted To Box

Watts:

Lumens:

800

Bulb Temp:

3000 °K

Bulbs:

5 - LED Medium A19 9w Max. 120v - included

Features:

This fixture features mouth-blown glass and slight variations are an inherent part of the handcrafting process.
LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
Meets Title 24 energy efficiency standards
Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Supplied with wire pre-laced through chain

Material List:

1 Body - Steel - Brushed Nickel

Safety Listing:

Safety Listed for Dry Locations

Instruction Sheets:

Trilingual (English, Spanish, and French) (3140403 3140405)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Glass

Cased Opal Etched

G560110-607

6 1/2

5 5/32

3 11/16

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Canopy	1 1/4			5 1/2

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97512S	Frosted		A19	Medium	9	9	120v	15000	800 230°	3000	90

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	3140405-848	1	785652045479	25	25	10	3.617	14.2	0	Yes
Master Pack	3140405EN3-962	0	10785652045476
NJ Pallet		18		48	40	77	85.556	255.6		No
NV Pallet		18		48	40	77	85.556	255.6		No
