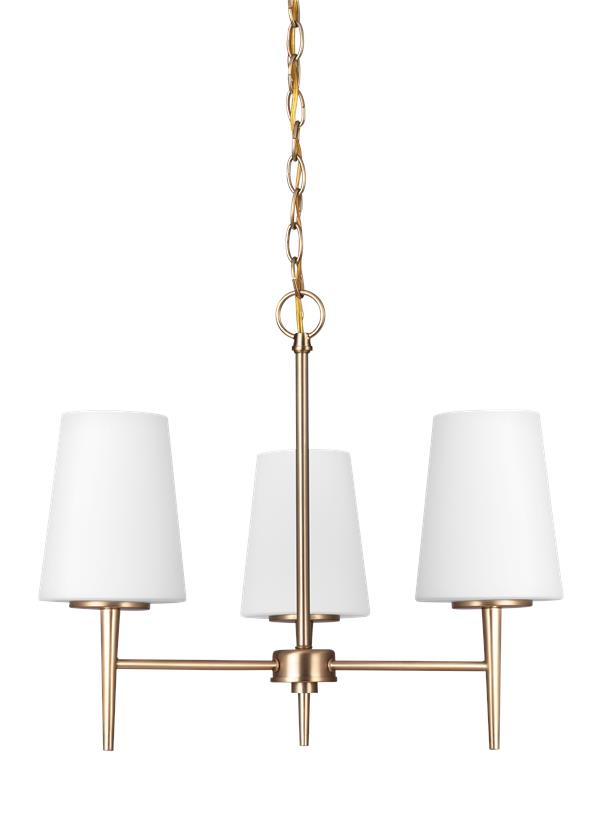

3140403EN3-848: Three Light Chandelier

	Collection: Driscoll
	Featured in the decorative Driscoll collection
	3 A19 Medium 9.3 watt light bulbs
	Fixture is supplied with 1 light bulbs
	cased opal Etched glass
	ENERGY STAR® Qualified
	UPC #:785652048470
	Finish: Satin Brass (848)

Dimensions:


Diameter:	20 1/2''
Height:	16 3/4''

Weight:

6.9 lbs.

Overall Height:

55''

Wire:

120'' (color/Gold)

Chain:

36''

Mounting Proc.:

Screw Collar - Chain

Connection:

Mounted To Box

Watts:

Lumens:

800

Bulb Temp:

3000 °K

Bulbs:

3 - LED Medium A19 9w Max. 120v - included

Features:

This fixture features mouth-blown glass and slight variations are an inherent part of the handcrafting process.
LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
Meets Title 24 energy efficiency standards
Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Supplied with wire pre-laced through chain

Material List:

1 Body - Steel - Satin Brass

Safety Listing:

Safety Listed for Dry Locations

Instruction Sheets:

Trilingual (English, Spanish, and French) (3140403 3140405)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Glass

Cased Opal Etched

G560110-607

6 1/2

5 5/32

3 11/16

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Canopy	1 1/4			5 1/2

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97512S	Frosted		A19	Medium	9	9	120v	15000	800 230°	3000	90

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	3140403-848	1	785652048470	18	18.25	10.5	1.996	9.2	0	Yes
Master Pack	3140403EN3-848	0	10785652048477
NJ Pallet		40		48	40	75	83.333	368		No
NV Pallet		40		48	40	75	83.333	368		No
