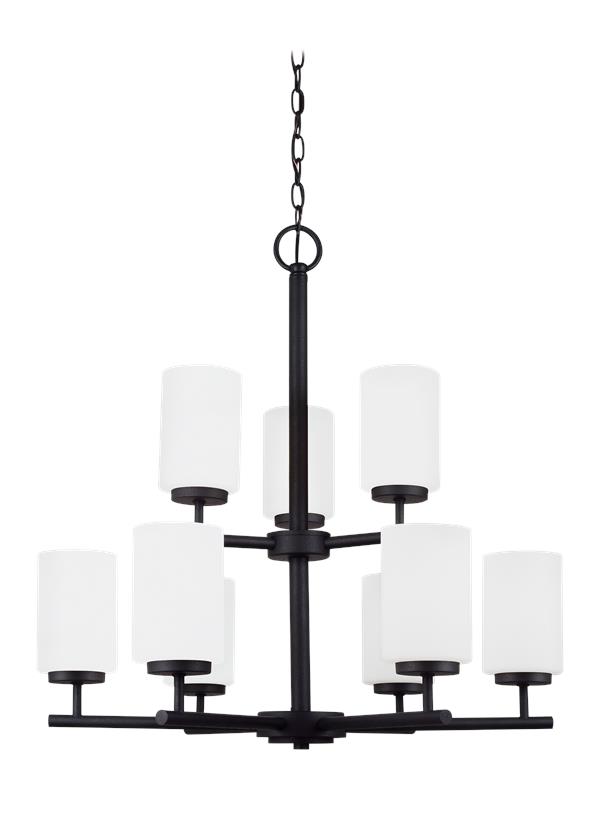

31162EN3-839: Nine Light Chandelier


Collection:  Oslo

Featured in the decorative Oslo collection

9 A19 Medium 9.3 watt light bulbs

Fixture is supplied with 1 light bulbs

cased opal Etched glass shades

ENERGY STAR® Qualified

UPC #:785652046575

Finish:   Blacksmith (839)
Dimensions:

Diameter: 26''
Height: 26 3/4''
Weight: 19.5 lbs.
Overall Height: 152 1/4''
Wire: 144'' (color/Brown)
Chain: 120''
Mounting Proc.: Screw Collar - Chain
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulbs:
  9 - LED Medium A19 9w Max. 120v - included
Features:
  • ENERGY STAR® Qualified
  • This fixture features mouth-blown glass and slight variations are an inherent part of the handcrafting process.
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
  • Supplied with wire pre-laced through chain
Material List:
1 Body - Steel - Blacksmith
1 Chain - Steel - Blacksmith
Safety Listing:
  Safety Listed for Dry Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (HC-1901FS)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Cased Opal Etched 9       5 29/32 3 15/16
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 13/16      5 1/2
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 31162EN3-839 1  785652046575  26 25 15.75 5.924 19.5 250 Yes
