Job Name:
Job Type:
Comments:
Quantity:
** By typing in the gray boxes above you can populate this form before printing.
** To save this document click on the logo above. A pdf document of this Specification Sheet will be created that can be saved locally.

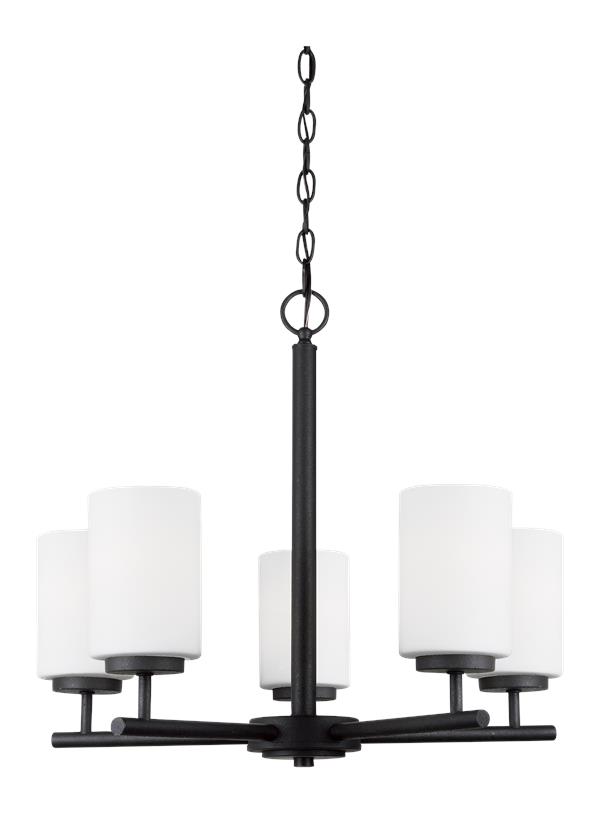

31161EN3-839: Five Light Chandelier



Collection:  Oslo


Supplied with adjustable 12-feet of wire and 10-feet of chain for preferred length

Adjustable arms rotate for up or down lighting for a customized look

An ENERGY STARĀ® qualified lighting fixture uses LED bulbs to offer savings without sacrificing performance, features and comfort

Install a dimmer switch for a warm glow effect and easily change the look and feel of the room

Designed for damp and dry environments allowing for occasional water moisture, such as bathrooms, covered patios or porches

UPC #:785652046544

Finish:   Blacksmith (839)

Dimensions:

Diameter: 24''
Height: 20''
Weight: 9.3 lbs.
Overall Height: 152 1/2''
Wire: 144'' (color/Brown)
Chain: 120''
Mounting Proc.: Screw Collar - Chain
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulbs:
  5 - LED Medium A19 9w Max. 120v - included
Features:
  • Adjustable arms rotate for up or down lighting
  • ENERGY STAR® Qualified
  • This fixture features mouth-blown glass and slight variations are an inherent part of the handcrafting process.
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
  • Supplied with wire pre-laced through chain
Material List:
1 Body - Steel - Teak/Black
1 Chain - Steel - Blacksmith
Safety Listing:
  Safety Listed for Dry Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (HC-1901FS)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Glass Cased Opal Etched 5       5 29/32 3 15/16
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 13/16      5 1/2
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 31161EN3-839 785652046544  20.125 20.75 8.75 2.115 11.8 175 Yes
NJ Pallet   32    48 40 76 84.444 377.6 No
NV Pallet   27    48 40 76 84.444 318 No
