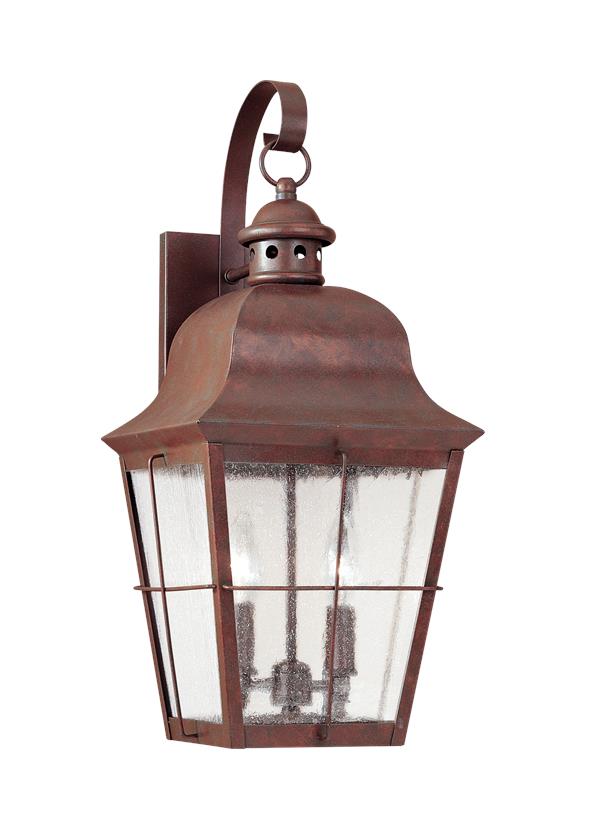

8463EN-44: Two Light Outdoor Wall Lantern



Collection:  Chatham


Weathered Copper Two Light LED Outdoor Wall Lantern with Clear Seeded Glass. Colonial Style. Generously Proportioned.

Classic, colonial lantern design with seeded glass panes in weathered copper finish over solid brass.

Featured in the decorative Chatham collection

The Sea Gull Collection Chatham two light outdoor wall fixture in weathered copper offers a timeless, traditional design with a classic window pane detailing over Frosted Seeded glass or Clear Seeded glass, and crowed with a cupola atop the dramatic mansard roofline. Offered in either a Weathered Copper finish or an Oxidized Bronze finish, the assortment includes a small one-light outdoor wall lantern (available in a Dark Sky version too), a large one-light outdoor wall lantern (available in a Dark Sky version too), a large two-light outdoor wall lantern, one-light or two-light outdoor post lanterns, as well as one-light or two-light outdoor pendants.

2 Torpedo Candelabra 3.5 watt light bulbs

Fixture is supplied with 1 light bulb

Clear seeded glass panels

Wet Rated

UPC #:785652032226

Finish:   Weathered Copper (44)

Dimensions:

Width: 9 1/4''
Height: 21''
Weight: 5.3 lbs.
Extends: 10''
Wire: 6 1/2''
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulb Appearance: Clear
Watts: 3.5
Lumens: 350
Bulb Temp: 2700 °K
Bulbs:
  2 - LED Candelabra Torpedo 3.5w Max. 120v - included
Features:
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Brass - Weathered Copper
1 Canopy - Brass - Weathered Copper
1 Arms - Brass - Weathered Copper
1 Candle Cover - Brass - Weathered Copper
Safety Listing:
  Safety Listed for Wet Locations
Safety Listed for Wet Locations
Instruction Sheets:
English (HC-231)
French (F-009)
Trilingual (English, Spanish, and French) (8463)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Panel Glass Clear Seeded 4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 4 3/4  5/8    8 1/2  12 1/2
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
LTB10C35027CB Clear   Glass Lens   Torpedo E12 Candelabra 3.5 3.5 120v 25000 350    360° 2700 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8463EN-44 785652032226  24.25 14.25 13.25 2.65 9.5 0 Yes
Master Pack 8463EN-44 10785652032223
NJ Pallet   30    48 40 75 83.333 285 No
NV Pallet   30    48 40 75 83.333 285 No
