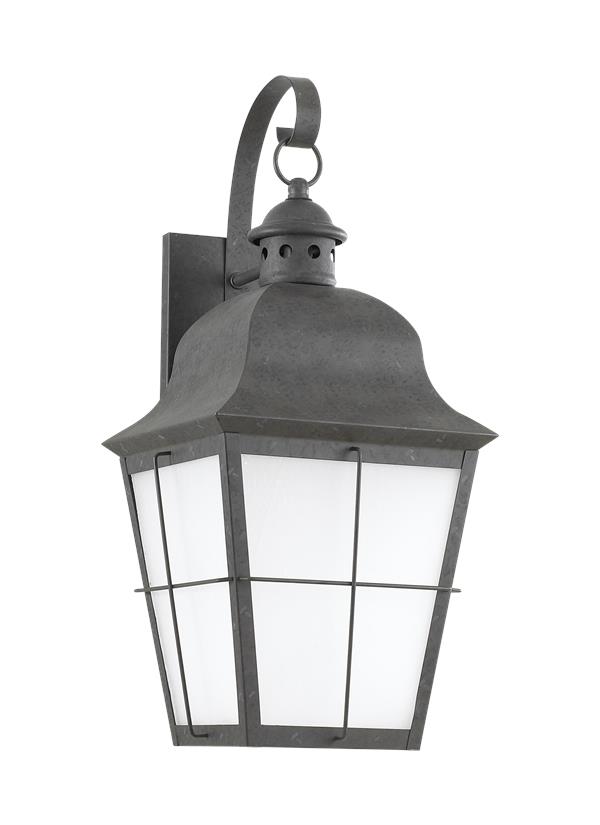

89273-46: One Light Outdoor Wall Lantern

	Collection: Chatham
	Weathered Copper Outdoor Wall Lantern One Light with Frosted Seeded Glass.
	Featured in the decorative Chatham collection
	1 A19 Medium 100 watt light bulb
	frosted seeded glass panels
	Easily converts to LED with optional replacement lamps
	Meets Title 24 energy efficiency standards
	UPC #:785652025228
	Finish: Oxidized Bronze (46)

Dimensions:


Length:	9 1/4"
Width:	9 1/4''
Height:	21''

Weight:

6.9 lbs.

Extends:

10''

Wire:

6 1/2''

Mounting Proc.:

Cap Nuts

Connection:

Mounted To Box

Bulbs:

1 - Medium A19 100w Max. 120v - Not included

Features:

Easily converts to LED with optional replacement lamps
Meets Title 24 energy efficiency standards
Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.

Material List:

1 Body - Brass - Oxidized Bronze

1 Housing - Glass - Oxidized Bronze

Safety Listing:

Safety Listed for Wet Locations
Safety Listed for Wet Locations

Instruction Sheets:

English (HC-231)
French (F-009)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Panel

Glass

Frosted Seeded

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Back Plate	8	4 3/4	5/8		8 1/2	12 1/2

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	89273-46	1	785652025228	24.75	14	13	2.607	8.2	0	Yes
Master Pack	89273-46	0	10785652025225
NJ Pallet		25		48	40	69.1	76.778	205		No
NV Pallet		30		48	40	70	77.778	247.5		No
