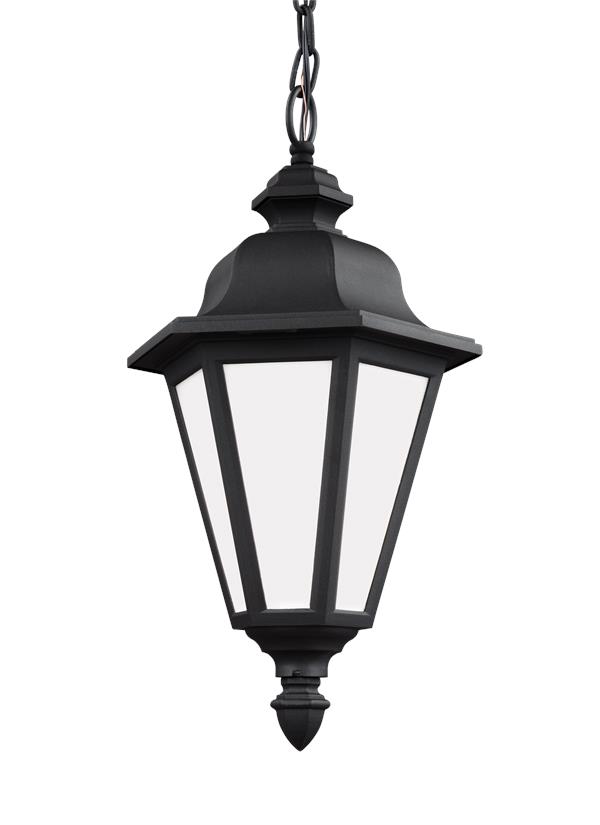

69025-12: One Light Outdoor Pendant



Collection:  Brentwood


Rugged But Decorative Cast Aluminum for Outdoor Decor. Pendant Fixture Made with Durable Black Powdercoat Finish Cast Aluminum and White Glass. U.L. Listed for Damp Location.

Rugged but decorative cast aluminum. Outdoor pendant fixture made with durable black powdercoat finish over cast aluminum and White Glass.

Featured in the decorative Brentwood collection

1 A19 Medium 100 watt light bulb

smooth white glass panels

Easily converts to LED with optional replacement lamps

Powder coat added to the finish to protect against aging.

UPC #:785652024740

Finish:   Black (12)

Dimensions:

Diameter: 10 1/4''
Height: 18 3/4''
Weight: 5.2 lbs.
Overall Height: 56 1/2''
Wire: 120'' (color/Black)
Chain: 36''
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulb Appearance: Clear
Bulbs:
  1 - Medium A19 100w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Powder coat added to the finish to protect against aging.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
  • Supplied with wire pre-laced through chain
Material List:
1 Cap - Die Cast Aluminum - Black
1 Body - Die Cast Aluminum - Black
1 Chain - Steel - Black
Safety Listing:
  Safety Listed for Damp Locations
Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990P6025-BRE)
Trilingual (English, Spanish, and French) (69025)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Panel Glass Smooth White 6     3 5/8 7 11/16
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 1 3/16      5 3/8
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 69025-12 785652024740  16.5 12 10.25 1.174 5.7 0 Yes
Master Pack 69025-12 10785652024747
NJ Pallet   70    48 40 76 84.444 399 No
NV Pallet   70    48 40 76 84.444 399 No
