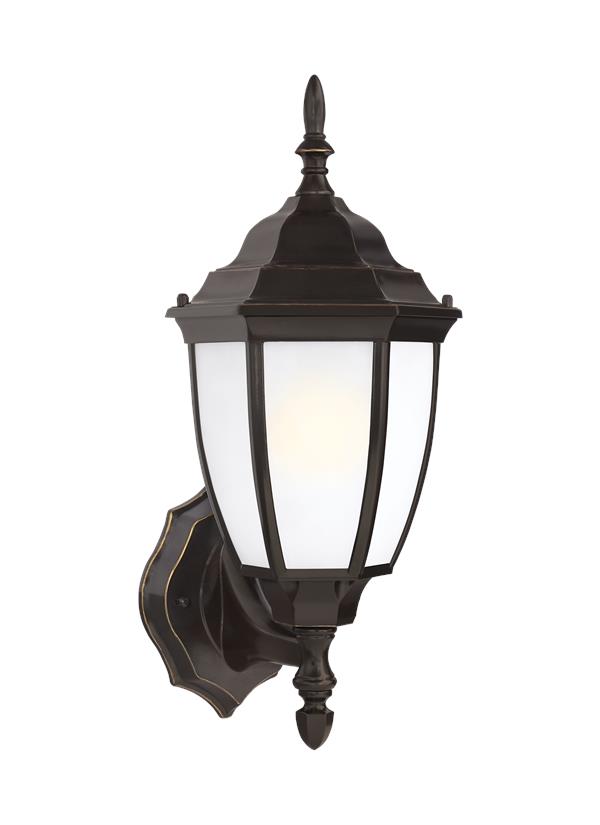

89940-782: One Light Outdoor Wall Lantern

	Collection: Bakersville
	Featured in the decorative Bakersville collection
	1 A19 Medium 100 watt light bulb
	Satin Etched glass shades
	Easily converts to LED with optional replacement lamps
	Meets Title 24 energy efficiency standards
	UPC #:785652024955
	Finish: Heirloom Bronze (782)

Dimensions:


Width:	6 1/2''
Height:	15 1/2''

Weight:

2 lbs.

Extends:

7 3/4''

Wire:

6 1/2''

Mounting Proc.:

Wall / Bath

Connection:

Mounted To Box

Bulbs:

1 - Medium A19 100w Max. 120v - Not included

Features:

Easily converts to LED with optional replacement lamps
Meets Title 24 energy efficiency standards
Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.

Material List:

1 Body - Aluminum - Heirloom Bronze

Safety Listing:

Safety Listed for Wet Locations

Instruction Sheets:

Trilingual (English, Spanish, and French) (HC-1703FS)
Trilingual (English, Spanish, and French) (990W8994_-BAK)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Shade

Glass

Satin Etched

2 15/16

5 9/32

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Back Plate	6 3/8	4 11/16	7/8		12 1/4	3 1/4

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	89940-782	1	785652024955	13.5	10	8.25	0.645	2.5	250	Yes
NJ Pallet		120		48	40	70.5	78.333	300		No
NV Pallet		120		48	40	70.5	78.333	300		No
