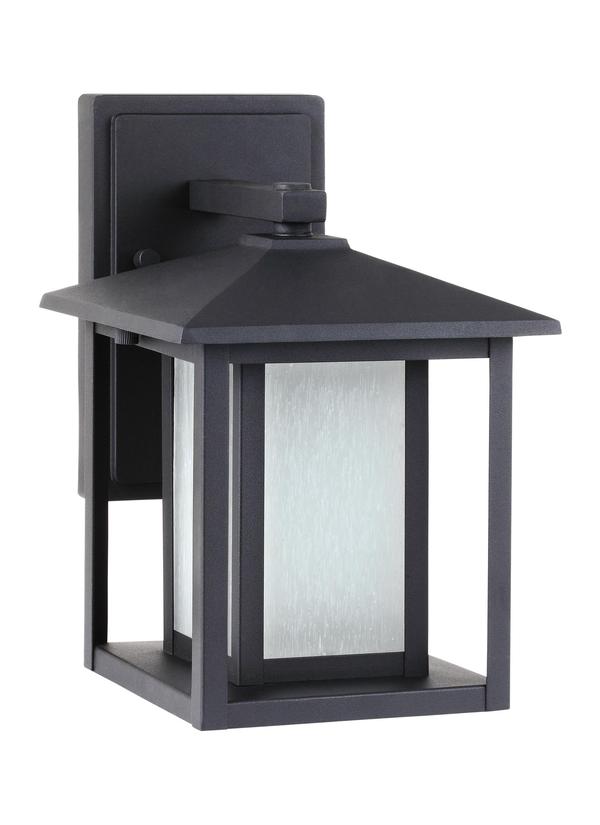

89029-12: One Light Outdoor Wall Lantern


Collection:  Hunnington

Featured in the decorative Hunnington collection

1 A19 Medium 60 watt light bulb

Etched seeded glass panels

Easily converts to LED with optional replacement lamps

Meets Title 24 energy efficiency standards

UPC #:785652024689

Finish:   Black (12)
Dimensions:

Width: 7''
Height: 11''
Weight: 3.4 lbs.
Extends: 8 1/2''
Wire: 6 1/2''
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 60w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Aluminum - Black
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990W8_0_-HUN)
Trilingual (English, Spanish, and French) (88025 88027 89029 89031)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Panel Glass Etched Seeded 4   3 1/4 3 1/4 6
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 8  4 3/4  1    3 1/4  10 3/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 89029-12 1  785652024689  14.5 11.5 9.75 0.941 3.8 0 Yes
Master Pack 89029-12 0  10785652024686
NJ Pallet   70    48 40 72 80 266 No
NV Pallet   70    48 40 72 80 266 No
