69131-12: One Light Outdoor Pendant


Collection:  Herrington

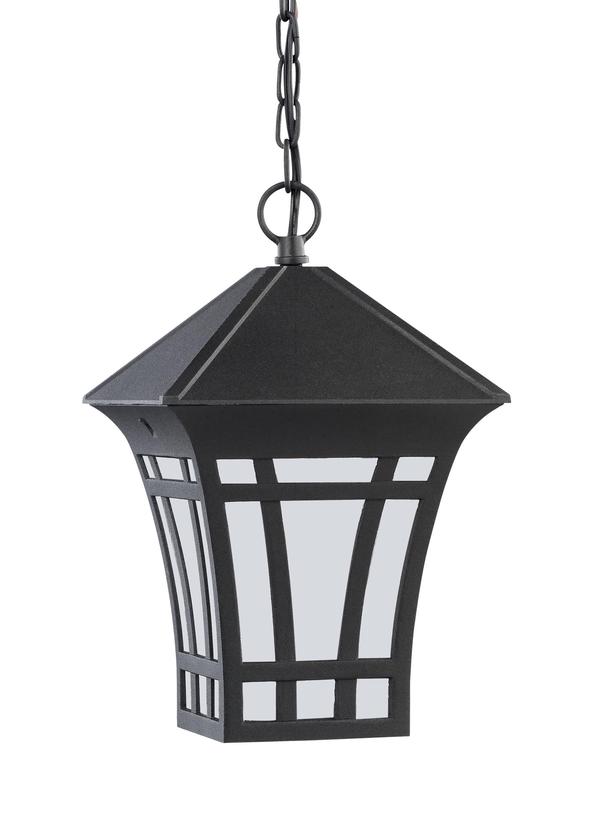

One Light Outdoor Pendant in Black Finish with Etched Glass, White Inside.

Featured in the decorative Herrington collection

1 A19 Medium 100 watt light bulb

Etched / white inside glass panels

Easily converts to LED with optional replacement lamps

Meets Title 24 energy efficiency standards

UPC #:785652025112

Finish:   Black (12)
Dimensions:

Length: 7 1/4"
Width: 7 1/4''
Height: 11 1/4''
Weight: 4 lbs.
Overall Height: 86''
Wire: 120'' (color/Black)
Chain: 72''
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 100w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
  • Supplied with wire pre-laced through chain
Material List:
1 Body - Aluminum - Black
1 Chain - Brass - Black
Safety Listing:
  Safety Listed for Damp Locations
Safety Listed for Damp Locations
Instruction Sheets:
Bilingual (English - French) (HC-1596FB)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Panel Glass Etched / White Inside 4   3 3/16 5 3/32 6 1/4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 1 3/16      5
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 69131-12 1  785652025112  14 9.25 9.25 0.693 4.9 0 Yes
Master Pack 69131-12 0  10785652025119
NJ Pallet   105    48 40 68.5 76.111 514.5 No
NV Pallet   105    48 40 68.5 76.111 514.5 No
