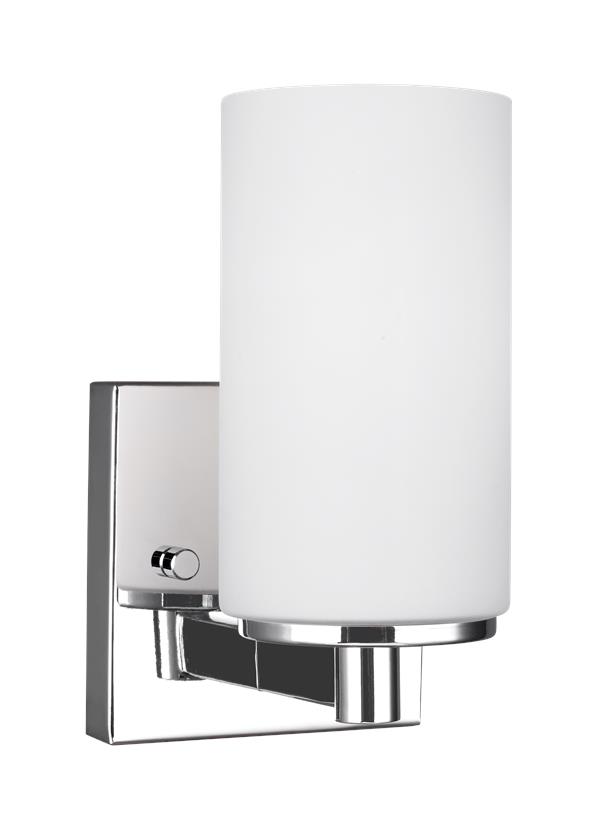

4139101-05: One Light Wall / Bath Sconce



Collection:  Hettinger


Supplied with 6.5-inches of wire

Fixture can be mounted in the up or down position for a customized look

For an eco-friendly lighting design, convert to LED bulbs to offer savings and reduce energy

To achieve the most flattering mirror light, choose LED bulbs with a Color Rendering Index of 90, and a warm color maximum temperature of 3500K

Install a dimmer switch for a warm glow effect and easily change the look and feel of the room

UPC #:785652002038

Finish:   Chrome (05)

Dimensions:

Width: 4 1/2''
Height: 7 7/8''
Weight: 1.6 lbs.
Extends: 5''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 100w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Fixture may be mounted in the up or down position
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Chrome
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (4139101 4439102 4439103 4439104)
Trilingual (English, Spanish, and French) (990W4_3910_-HET)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Glass Etched / White Inside 1 G560196-303     6 1/8 3 1/2
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 4 1/2  4 1/2  3/4    5 3/4  2 1/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4139101-05 785652002038  11.75 7.75 7.5 0.395 2 0 Yes
Master Pack 4139101-05 10785652002035
NJ Pallet   180    48 40 73.5 81.667 360 No
NV Pallet   180    48 40 73.5 81.667 360 No
