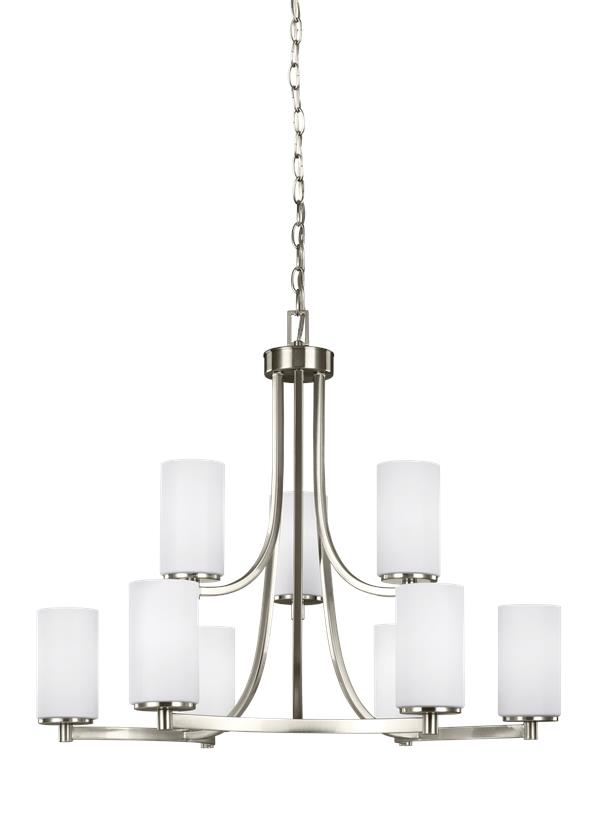

3139109-962: Nine Light Chandelier


Collection:  Hettinger

Featured in the decorative Hettinger collection

9 A19 Medium 60 watt light bulbs

Etched / white inside glass shades

Easily converts to LED with optional replacement lamps

Meets Title 24 energy efficiency standards

UPC #:785652002021

Finish:   Brushed Nickel (962)
Dimensions:

Diameter: 30''
Height: 24 5/8''
Weight: 16.6 lbs.
Overall Height: 99 1/2''
Wire: 120'' (color/Clear Silver)
Chain: 72''
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulbs:
  9 - Medium A19 60w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
  • Supplied with wire pre-laced through chain
Material List:
1 Body - Steel - Brushed Nickel
1 Chain - Steel - Brushed Nickel
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990CH313910_-HET)
Trilingual (English, Spanish, and French) (3139106 3139109)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Etched / White Inside 9 G560196-303     6 1/8 3 1/2
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4      5 1/8
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 3139109-962 1  785652002021  28.5 25.25 20 8.329 21.2 0 Yes
Master Pack 3139109-962 0  10785652002028
NJ Pallet   4    48 40 55 61.111 84.8 No
NV Pallet   4    48 40 55 61.111 84.8 No
