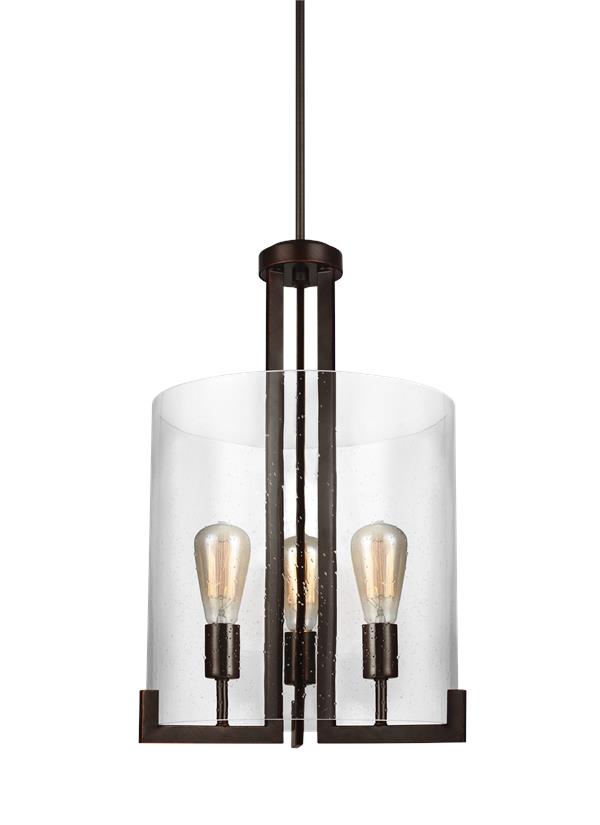

5126003-710: Three Light Hall / Foyer



Collection:  Dawes


Featured in the decorative Dawes collection

3 A19 Medium 75 watt light bulbs

Clear seeded glass shade

Sloped ceiling mounting hardware included

Meets Title 24 energy efficiency standards

UPC #:785652003608

Finish:   Bronze (710)

Dimensions:

Diameter: 15 3/4''
Height: 23 1/2''
Weight: 10.2 lbs.
Overall Height: 67 1/2''
Wire: 120'' (color/Brown)
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulbs:
  3 - Medium ST19 75w Max. 120v - Not included
0 - Medium A19 75w Max. 120v - Not included
Features:
  • This fixture features mouth-blown glass and slight variations are an inherent part of the handcrafting process.
  • Sloped ceiling mounting hardware included
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
  • Vintage lamp(s) recommended for aesthetics
Material List:
1 Body - Steel - Bronze
1 6" Stem - Steel - Bronze
3 12" Stem - Steel - Bronze
Safety Listing:
  Safety Listed for Damp Locations
Safety Listed for Damp Locations
Instruction Sheets:

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Glass Clear Seeded 1       14 1/2 14
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 5126003-710 785652003608  28 19.5 19.25 6.082 18.2 0 Yes
Master Pack 5126003-710 10785652003605
NJ Pallet     48 40 62 68.889 163 No
NV Pallet     48 40 62 68.889 163 No
