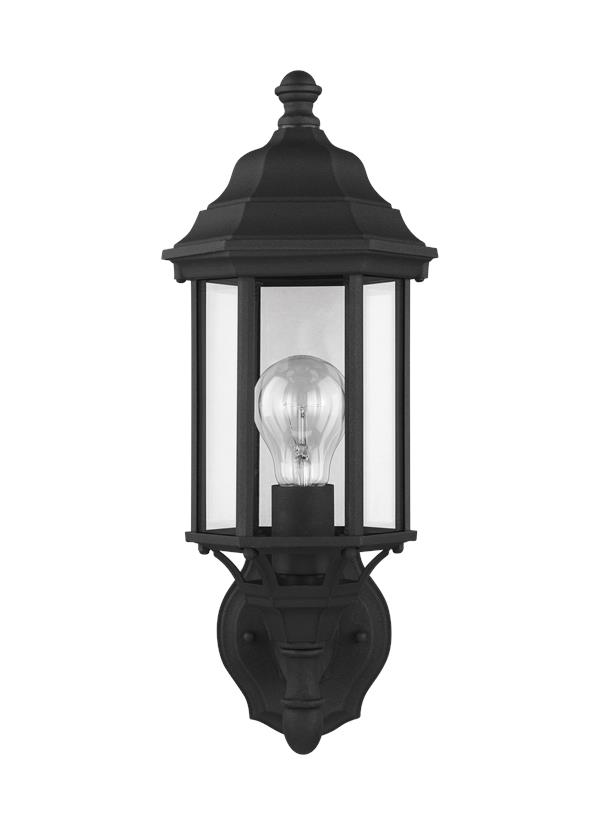

8538701-12: Small One Light Uplight Outdoor Wall Lantern

	Collection: Sevier
	Featured in the decorative Sevier collection
	1 A19 Medium 100 watt light bulb
	Clear glass panels
	Clear bulb(s) recommended for this fixture
	Easily converts to LED with optional replacement lamps
	UPC #:785652001307
	Finish: Black (12)

Dimensions:


Width:	6 1/2''
Height:	16 1/4''

Weight:

2.42 lbs.

Extends:

7 3/4''

Wire:

6 1/2'' (color/Black/White)

Mounting Proc.:

Cap Nuts

Connection:

Mounted To Box

Bulbs:

1 - Medium A19 100w Max. 120v - Not included

Features:

Clear bulb(s) recommended for this fixture
Easily converts to LED with optional replacement lamps
Meets Title 24 energy efficiency standards
Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.

Material List:

1 Body - Die Cast Aluminum - Black

Safety Listing:

Safety Listed for Wet Locations

Instruction Sheets:

English (990W85387_1-SEV)
English (8538701 8538751)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Panel

Glass

Clear

2 1/8

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Back Plate	5 3/8	4 1/2	7/8		13 1/2	2 3/4

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	8538701-12	1	785652001307	15.5	10	9	0.807	3.4	0	Yes
Master Pack	8538701-12	0	10785652001304
NJ Pallet		96		48	40	77	85.556	326.4		No
NV Pallet		96		48	40	77	85.556	326.4		No
