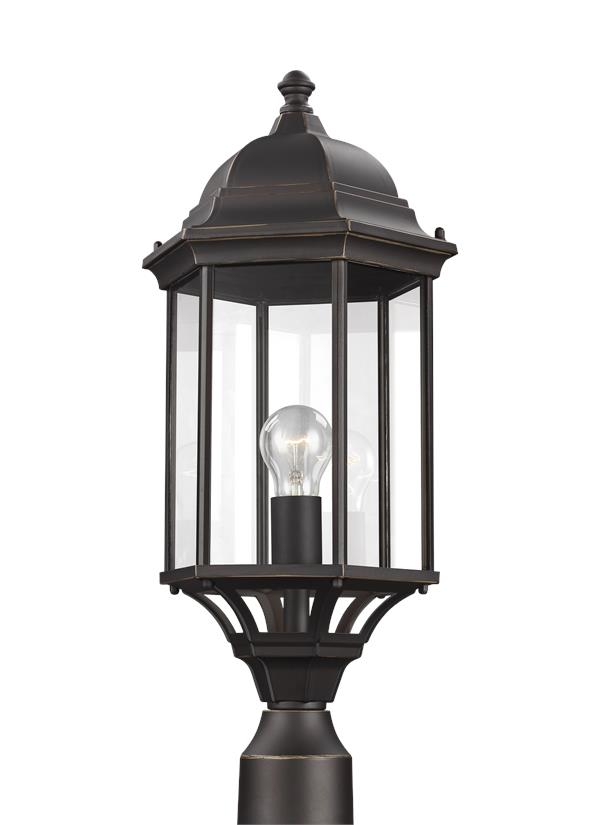

8238701-71: Large One Light Outdoor Post Lantern



Collection:  Sevier


Supplied with 6.5-inches of wire

For an eco-friendly lighting design, convert to LED bulbs to offer savings and reduce energy

Designed for damp and wet environments allowing for direct water contact

1-year manufacturer warranty

Meets Title 24 energy efficiency standards

UPC #:785652001376

Finish:   Antique Bronze (71)

Dimensions:

Diameter: 9 3/8''
Height: 22 1/8''
Weight: 3.96 lbs.
Wire: 6 1/2'' (color/Black/White)
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 100w Max. 120v - Not included
Features:
  • Clear bulb(s) recommended for this fixture
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Die Cast Aluminum - Antique Bronze
1 Post Cup - Die Cast Aluminum - Antique Bronze
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
English (8238601 8238651 8238701 8238751)
Trilingual (English, Spanish, and French) (8238701 8238751)
Trilingual (English, Spanish, and French) (990OP82387_1-SEV)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Panel Glass Clear 6     3 1/4 8 7/8
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8238701-71 785652001376  20.75 12.25 11 1.618 5.5 0 Yes
Master Pack 8238701-71 10785652001373
NJ Pallet   48    48 40 70 77.778 264 No
NV Pallet   48    48 40 70 77.778 264 No
