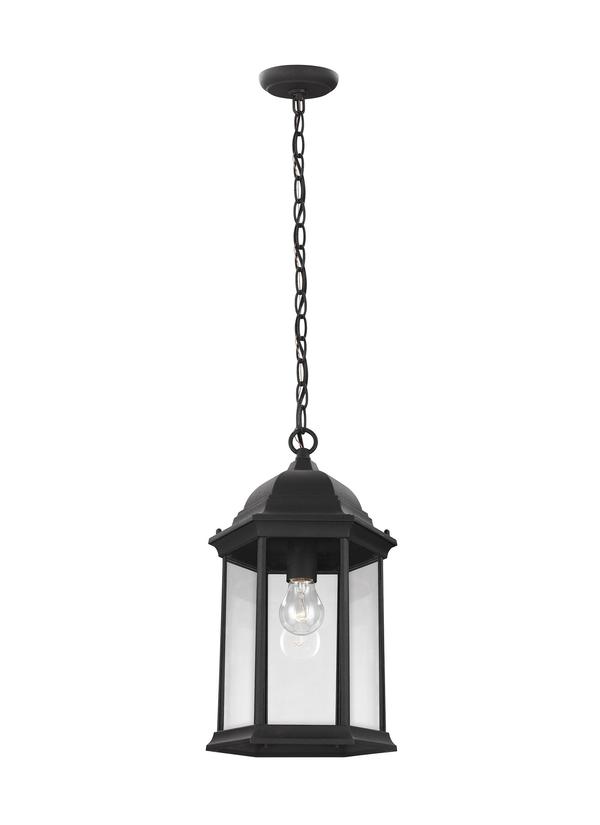

6238701-12: One Light Outdoor Pendant


Collection:  Sevier

Featured in the decorative Sevier collection

1 A19 Medium 100 watt light bulb

Clear glass panels

Clear bulb(s) recommended for this fixture

Meets Title 24 energy efficiency standards

UPC #:785652001345

Finish:   Black (12)
Dimensions:

Diameter: 9 3/8''
Height: 16 5/8''
Weight: 4.4 lbs.
Overall Height: 54 1/4''
Wire: 72'' (color/Black)
Chain: 36''
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 100w Max. 120v - Not included
Features:
  • Clear bulb(s) recommended for this fixture
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
  • Supplied with wire pre-laced through chain
Material List:
1 Body - Die Cast Aluminum - Black
1 Chain - Steel - Black
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (6238701 6238751)
Trilingual (English, Spanish, and French) (6238701 6238751)
Trilingual (English, Spanish, and French) (990P62387_1-SEV)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Panel Glass Clear 6     3 1/4 8 7/8
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 1      4 3/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 6238701-12 1  785652001345  19 12.25 10.75 1.448 5.8 0 Yes
Master Pack 6238701-12 0  10785652001342
NJ Pallet   48    48 40 69 76.667 278.4 No
NV Pallet   48    48 40 69 76.667 278.4 No
