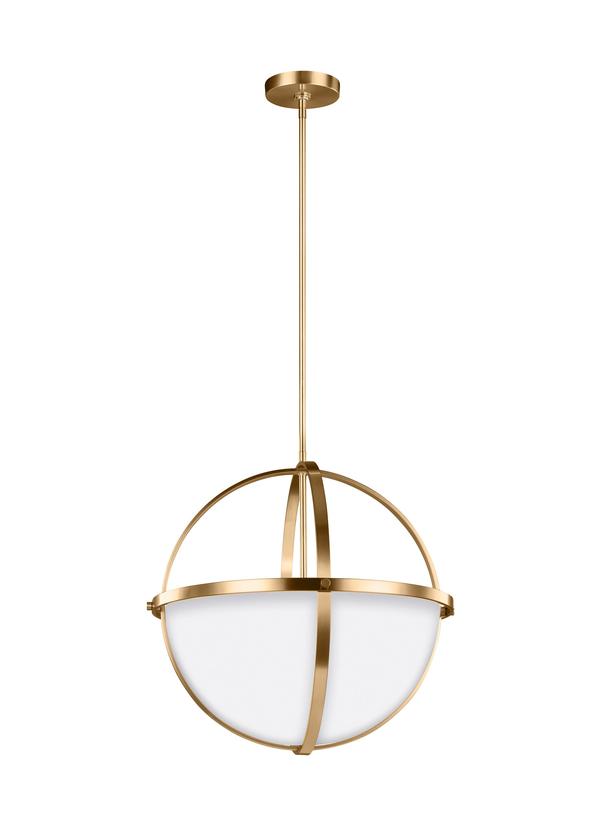

6624603-848: Three Light Pendant



Collection:  Alturas


Supplied with pre-laced, adjustable 12-feet of wire for ease of installation and to save you time

Additional extension rods offer you the option for a customized look

Mounting hardware included for use on flat, slope, vaulted or cathedral ceilings

For an eco-friendly lighting design, convert to LED bulbs to offer savings and reduce energy

Install a dimmer switch for a warm glow effect and easily change the look and feel of the room

UPC #:785652000645

Finish:   Satin Brass (848)

Dimensions:

Diameter: 19''
Height: 18 3/4''
Weight: 12.7 lbs.
Overall Height: 63 1/4''
Wire: 144'' (color/Gold)
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulbs:
  3 - Medium A19 100w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Sloped ceiling mounting hardware included
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Satin Brass
1 6" Stem - Steel - Satin Brass
3 12" Stem - Steel - Satin Brass
1 Sloped Ceiling Hardware - Steel - Satin Brass
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990P6624603-ALT)
Trilingual (English, Spanish, and French) (6624603)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Glass Etched / White Inside 1 G560197-303     8 3/8 16 1/2
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4      5 1/8
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 6624603-848 785652000645  20.25 20.25 15 3.56 15.75 0 Yes
Master Pack 6624603-848 10785652000642
NJ Pallet   18    48 40 65 72.222 282.6 No
NV Pallet   18    48 40 65 72.222 282.6 No
