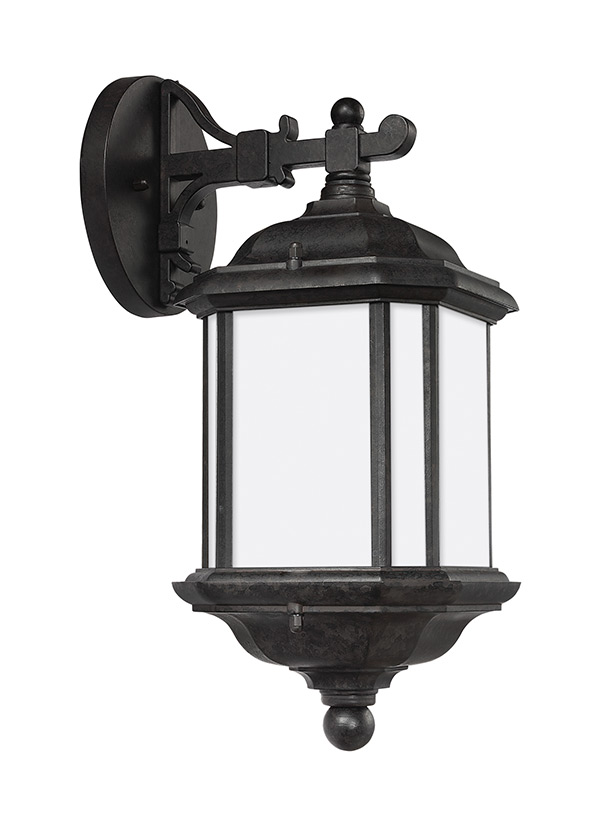

84530-746: One Light Outdoor Wall Lantern



Collection:  Kent


Outdoor wall lantern finished oxford bronze over die-cast aluminum with satin etched glass.

One Light Outdoor Wall Lantern in Oxford Bronze Finish with Satin Etched Glass.

Design #: D20032

Featured in the decorative Kent collection

1 A19 Medium 100 watt light bulb

Satin Etched glass panels and Satin Etched glass panels

Easily converts to LED with optional replacement lamps

Fixture may be mounted in the up or down position

UPC #:785652117473

Finish:   Oxford Bronze (746)

Dimensions:

Width: 6 1/2''
Height: 15''
Weight: 3.5 lbs.
Extends: 8 1/2''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulb Appearance: Clear
Bulbs:
  1 - Medium A19 100w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Fixture may be mounted in the up or down position
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Die Cast Aluminum - Oxford Bronze
Safety Listing:
  Safety Listed for Wet Locations
Safety Listed for Wet Locations
Instruction Sheets:
English (HC-408)
French (F-009)
Trilingual (English, Spanish, and French) (990W84030-84530-84032-84532-KEN)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Panel Glass Satin Etched 4
Panel Glass Satin Etched 4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate     5/8  5 1/2  12 1/4  2 3/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 84530-746 785652117473  17.5 10.5 8 0.851 4.2 0 Yes
Master Pack 84530-746 10785652117470
NJ Pallet   80    48 40 70 77.778 336 No
NV Pallet   80    48 40 70 77.778 336 No
