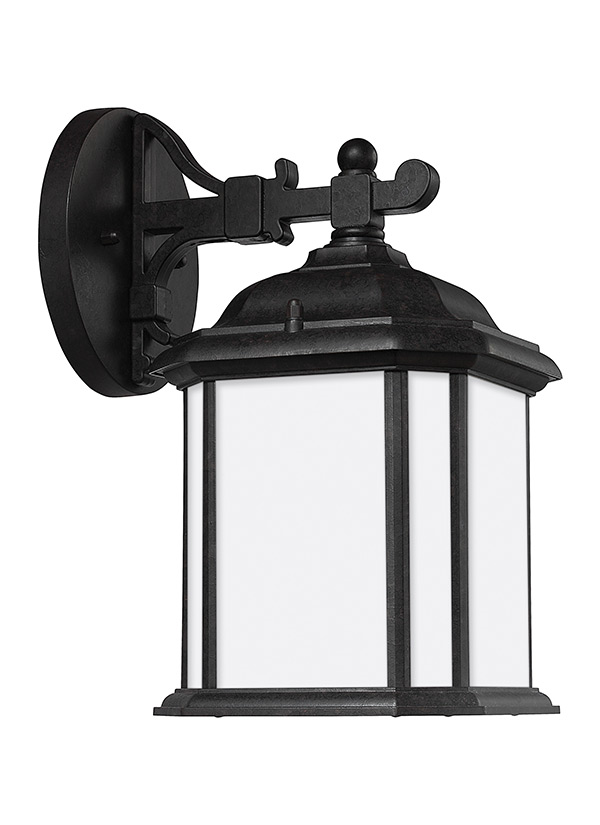

84529-746: One Light Outdoor Wall Lantern



Collection:  Kent


Outdoor wall lantern finished oxford bronze over die-cast aluminum with satin etched glass.

One Light Outdoor Wall Lantern in Oxford Bronze Finish with Satin Etched Glass

Design #: D20031

Featured in the decorative Kent collection

1 A19 Medium 100 watt light bulb

Satin Etched glass panels and Satin Etched glass panels

Easily converts to LED with optional replacement lamps

Meets Title 24 energy efficiency standards

UPC #:785652117459

Finish:   Oxford Bronze (746)

Dimensions:

Width: 6 1/2''
Height: 11 1/2''
Weight: 3.2 lbs.
Extends: 8 1/2''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulb Appearance: Clear
Bulbs:
  1 - Medium A19 100w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Die Cast Aluminum - Oxford Bronze
Safety Listing:
  Safety Listed for Wet Locations
Safety Listed for Wet Locations
Instruction Sheets:
English (HC-408)
French (F-009)
Trilingual (English, Spanish, and French) (990W84029-84529-84031-84531-KEN)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Panel Glass Satin Etched 4
Panel Glass Satin Etched 4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate     5/8  5 1/2  2 3/4  8 3/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 84529-746 785652117459  15 10.25 8 0.712 4 0 Yes
Master Pack 84529-746 10785652117456
NJ Pallet   96    48 40 70 77.778 384 No
NV Pallet   96    48 40 70 77.778 384 No
