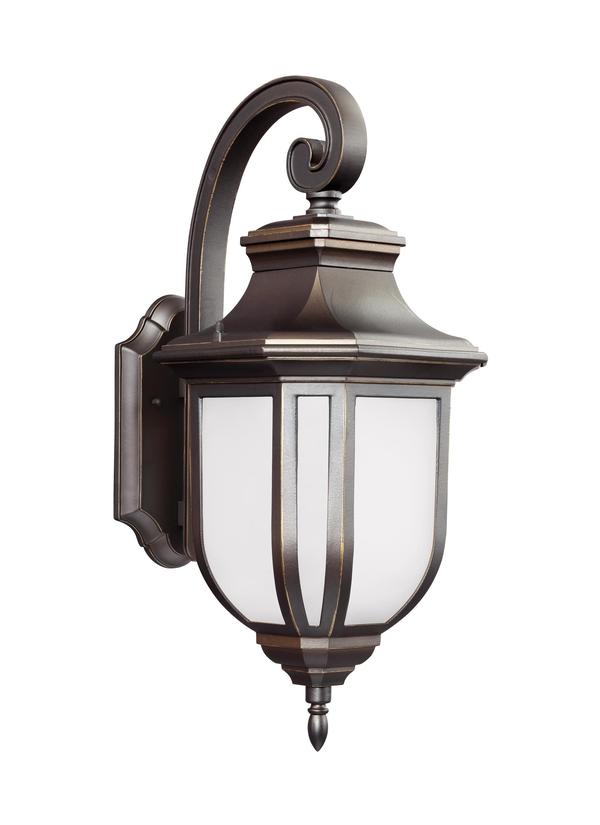

8736301-71: Large One Light Outdoor Wall Lantern


Collection:  Childress

Featured in the decorative Childress collection

1 A19 Medium 100 watt light bulb

Satin Etched glass panels and Satin Etched galvanized steel panels

Easily converts to LED with optional replacement lamps

Meets Title 24 energy efficiency standards

UPC #:785652112966

Finish:   Antique Bronze (71)
Dimensions:

Width: 9''
Height: 21 1/4''
Weight: 6.2 lbs.
Extends: 11 3/4''
Wire: 6'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 100w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Die Cast Aluminum - Black
1 Cap - Die Cast Aluminum - Black
1 Canopy - Die Cast Aluminum - Black
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990W8_36301-CHI)
Trilingual (English, Spanish, and French) (8736301)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Panel Glass Satin Etched 4 G560223-619
Panel Galvanized Steel Satin Etched 4 G560224-619
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 9 3/8  4 7/8  7/8    10 1/4  11
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8736301-71 1  785652112966  14.25 11.75 22.75 2.204 8.1 0 Yes
Master Pack 8736301-71 0  10785652112963
NJ Pallet   36    48 40 74 82.222 291.6 No
NV Pallet   36    48 40 74 82.222 291.6 No
