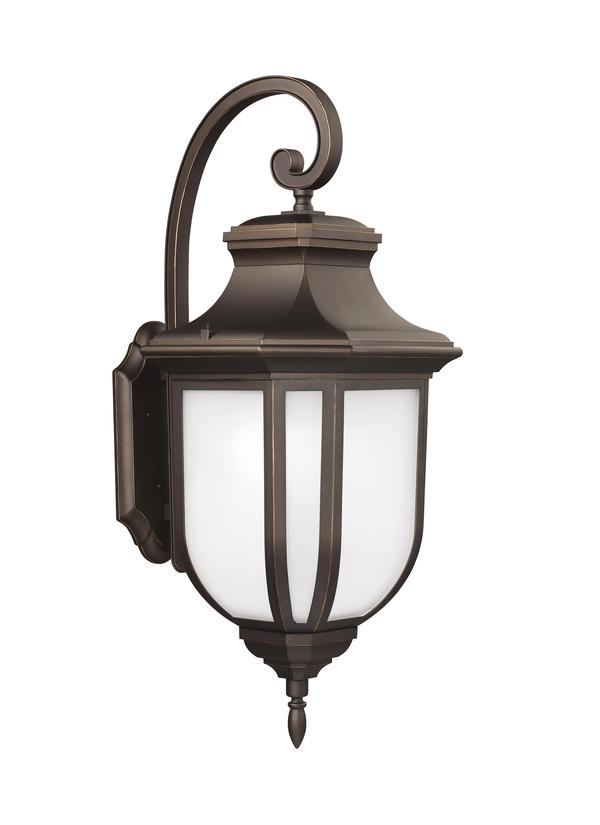

8636301-71: Medium One Light Outdoor Wall Lantern


Collection:  Childress

Featured in the decorative Childress collection

1 A19 Medium 100 watt light bulb

Satin Etched glass shade

Easily converts to LED with optional replacement lamps

Meets Title 24 energy efficiency standards

UPC #:785652107276

Finish:   Antique Bronze (71)
Dimensions:

Width: 6 3/8''
Height: 14 5/8''
Weight: 3.5 lbs.
Extends: 8 1/2''
Wire: 6'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 100w Max. 120v - Not included
Features:
  • This fixture features mouth-blown glass and slight variations are an inherent part of the handcrafting process.
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Die Cast Aluminum - Antique Bronze
1 Cap - Die Cast Aluminum - Antique Bronze
1 Canopy - Die Cast Al. / Steel - Antique Bronze
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990W8_36301-CHI)
Trilingual (English, Spanish, and French) (8736301)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Satin Etched 1 G560222-619
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 6 7/8  4 1/2  7/8    7 3/4  7
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8636301-71 1  785652107276  10.2 8.3 16.1 0.789 4.1 0 Yes
Master Pack 8636301-71 0  10785652107273
NJ Pallet   72    48 40 74 82.222 295.2 No
NV Pallet   72    48 40 74 82.222 295.2 No
