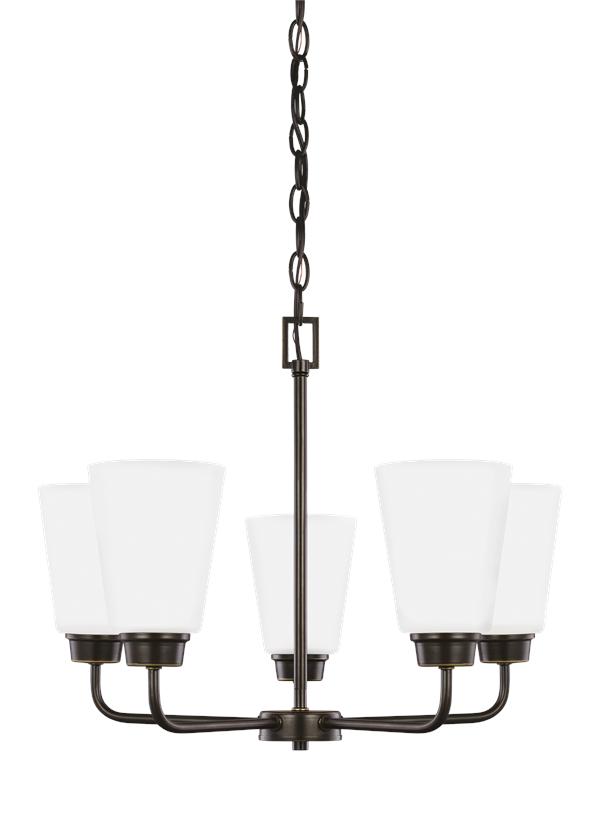

3115205-782: Five Light Chandelier


Collection:  Kerrville

Featured in the decorative Kerrville collection

5 A19 Medium 100 watt light bulbs

Satin Etched glass shades

Adjustable arms rotate for up or down lighting

Easily converts to LED with optional replacement lamps

UPC #:785652111624

Finish:   Heirloom Bronze (782)
Dimensions:

Diameter: 20 3/8''
Height: 17''
Weight: 8.2 lbs.
Overall Height: 55 1/8''
Wire: 72'' (color/Brown)
Chain: 36''
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulbs:
  5 - Medium A19 100w Max. 120v - Not included
Features:
  • Adjustable arms rotate for up or down lighting
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
  • Supplied with wire pre-laced through chain
Material List:
1 Body - Steel - Heirloom Bronze
1 Chain - Steel - Heirloom Bronze
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990CH311520_-KER)
Trilingual (English, Spanish, and French) (33115203 3115205 3115209)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Satin Etched 5 G560218-619     5 3/8 4 3/8
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4      5
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 3115205-782 1  785652111624  20.5 20.5 8.25 2.006 10.3 175 Yes
NJ Pallet   40    48 40 72 80 412 No
NV Pallet   40    48 40 72 80 412 No
