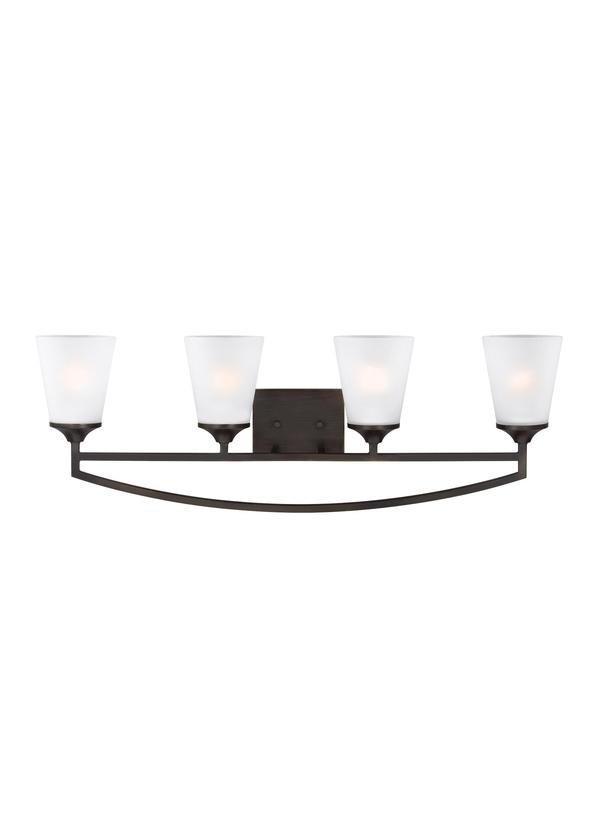

4424504-710: Four Light Wall/ Bath



Collection:  Hanford


Featured in the decorative Hanford collection

4 A19 Medium 100 watt light bulbs

Satin Etched glass shades

Easily converts to LED with optional replacement lamps

Fixture may be mounted in the up or down position

UPC #:785652110962

Finish:   Bronze (710)

Dimensions:

Width: 33 1/2''
Height: 11 1/4''
Weight: 9.8 lbs.
Extends: 6 1/2''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  4 - Medium A19 100w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Fixture may be mounted in the up or down position
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Bronze
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (4124501 4424502 4424503 4424504)
Trilingual (English, Spanish, and French) (4124501 4424502 4424503 4424504)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Glass Satin Etched 4 G560251-619     5 3/4 5 1/8
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 4 9/16  7/8    5 1/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4424504-710 785652110962  34 11 10.5 2.273 12.4 0 Yes
Master Pack 4424504-710 10785652110969
NJ Pallet   35    48 40 71.25 79.167 434 No
NV Pallet   30    48 40 71.25 79.167 372 No
