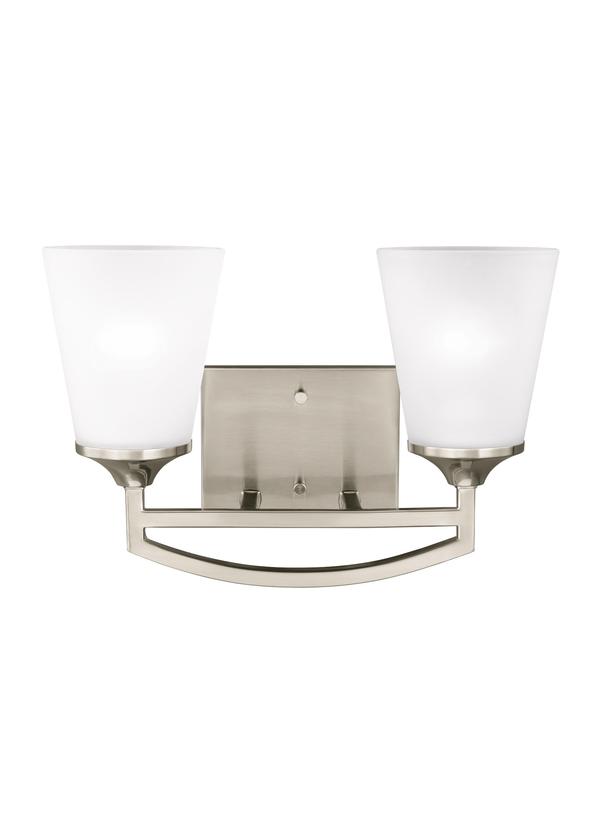

4424502-962: Two Light Wall / Bath


Collection:  Hanford

Featured in the decorative Hanford collection

2 A19 Medium 100 watt light bulbs

Satin Etched glass shades

Easily converts to LED with optional replacement lamps

Fixture may be mounted in the up or down position

UPC #:785652110863

Finish:   Brushed Nickel (962)
Dimensions:

Width: 14 9/16''
Height: 9 5/8''
Weight: 4.8 lbs.
Extends: 6 1/2''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  2 - Medium A19 100w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Fixture may be mounted in the up or down position
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Brushed Nickel
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (4124501 4424502 4424503 4424504)
Trilingual (English, Spanish, and French) (4124501 4424502 4424503 4424504)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Satin Etched 2 G560251-619     5 3/4 5 1/8
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 4 9/16  6  7/8    5 15/16  3 11/16
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4424502-962 1  785652110863  15.1 13.8 7.7 0.929 5.35 0 Yes
Master Pack   2  10785652110860  15.8 16.2 14.9 2.207 12.6 0 Yes
NJ Pallet   48    48 40 73 81.111 302.4 No
NV Pallet   64    48 40 73 81.111 441.6 No
