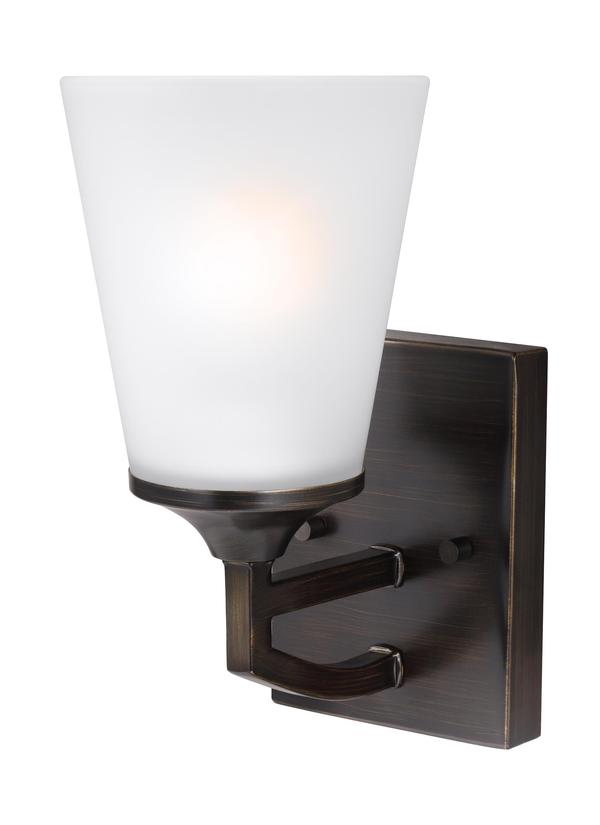

4124501-710: One Light Wall / Bath Sconce

	Collection: Hanford
	Featured in the decorative Hanford collection
	1 A19 Medium 100 watt light bulb
	Satin Etched glass shade
	Easily converts to LED with optional replacement lamps
	Fixture may be mounted in the up or down position
	UPC #:785652110825
	Finish: Bronze (710)

Dimensions:


Width:	5 1/8''
Height:	10 1/8''

Weight:

2.5 lbs.

Extends:

6 3/4''

Wire:

6 1/2'' (color/Black/White)

Mounting Proc.:

Cap Nuts

Connection:

Mounted To Box

Bulbs:

1 - Medium A19 100w Max. 120v - Not included

Features:

Easily converts to LED with optional replacement lamps
Fixture may be mounted in the up or down position
Meets Title 24 energy efficiency standards
Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.

Material List:

1 Body - Steel - Bronze

Safety Listing:

Safety Listed for Damp Locations

Instruction Sheets:

English (4124501 4424502 4424503 4424504)
Trilingual (English, Spanish, and French) (4124501 4424502 4424503 4424504)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Shade

Glass

Satin Etched

G560251-619

5 3/4

5 1/8

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Back Plate	6	4 9/16	7/8		7 1/8	3

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	4124501-710	1	785652110825	11.5	9.5	8.25	0.522	3.1	0	Yes
Master Pack		4	10785652110822	19.5	12	17	2.302	13.9	0	Yes
NJ Pallet		144		48	40	75	83.333	500.4		No
NV Pallet		144		48	40	75	83.333	500.4		No
