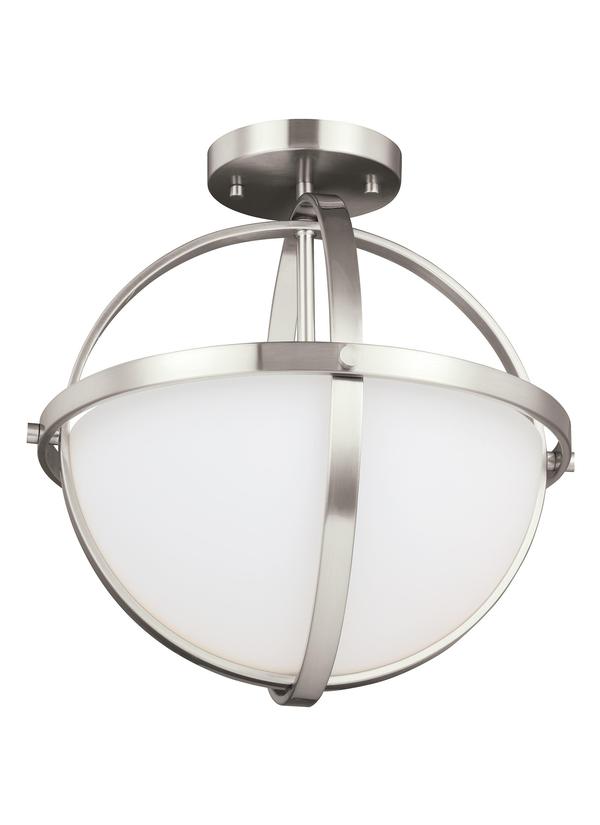

7724602-962: Two Light Semi-Flush Convertible Pendant



Collection:  Alturas


Supplied with pre-laced, adjustable 6-feet of wire and 3-feet of chain for preferred length

Dual mounted fixture that can be installed semi-flush or as a pendant for a customized look

For an eco-friendly lighting design, convert to LED bulbs to offer savings and reduce energy

Install a dimmer switch for a warm glow effect and easily change the look and feel of the room

Designed for damp and dry environments allowing for occasional water moisture, such as bathrooms, covered patios or porches

UPC #:785652108983

Finish:   Brushed Nickel (962)

Dimensions:

Diameter: 14''
Height: 16 3/8''
Weight: 7 lbs.
Height Flush: 14 7/8''
Overall Height: 53 5/8''
Wire: 72'' (color/Clear Silver)
Chain: 36''
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulbs:
  2 - Medium A19 60w Max. 120v - Not included
Features:
  • Fixture is dual mount and may be installed semi-flush or as a pendant.
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
  • Supplied with wire pre-laced through chain
Material List:
1 Body - Steel - Brushed Nickel
1 Chain - Steel - Brushed Nickel
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990C7724602-ALT)
Trilingual (English, Spanish, and French) (7724602)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Glass Etched / White Inside 1 G560198-303     6 12
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4      5 1/8
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 7724602-962 785652108983  16 16 13 1.926 9.3 0 Yes
Master Pack 7724602-962 10785652108980
NJ Pallet   36    48 40 72 80 334.8 No
NV Pallet   36    48 40 72 80 334.8 No
