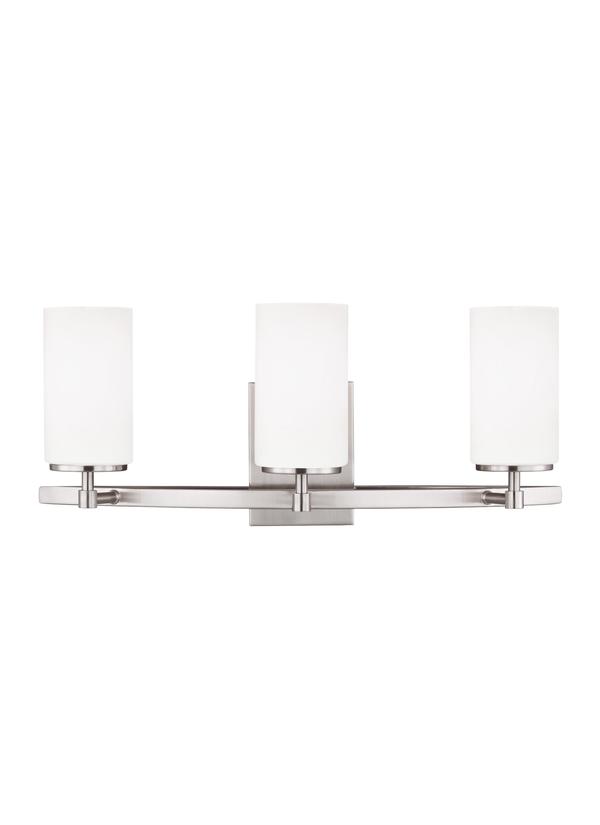

4424603-962: Three Light Wall / Bath



Collection:  Alturas


Supplied with 6.5-inches of wire

Fixture can be mounted in the up or down position for a customized look

For an eco-friendly lighting design, convert to LED bulbs to offer savings and reduce energy

To achieve the most flattering mirror light, choose LED bulbs with a Color Rendering Index of 90, and a warm color maximum temperature of 3500K

Install a dimmer switch for a warm glow effect and easily change the look and feel of the room

UPC #:785652108945

Finish:   Brushed Nickel (962)

Dimensions:

Width: 22''
Height: 9 1/8''
Weight: 4.1 lbs.
Extends: 7 1/2''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  3 - Medium A19 100w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Fixture may be mounted in the up or down position
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Brushed Nickel
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (4124601 4424602 4424603)
Trilingual (English, Spanish, and French) (4124601 4424602 4424603 4424604)
Trilingual (English, Spanish, and French) (990W4_2460_-ALT)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Glass Etched / White Inside 3 G560196-303     6 1/8 3 1/2
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 4 3/8    6 1/8
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4424603-962 785652108945  24.5 9.25 10.75 1.41 5.5 0 Yes
Master Pack 4424603-962 10785652108942
NJ Pallet   48    48 40 77 85.556 264 No
NV Pallet   42    48 40 77 85.556 231 No
