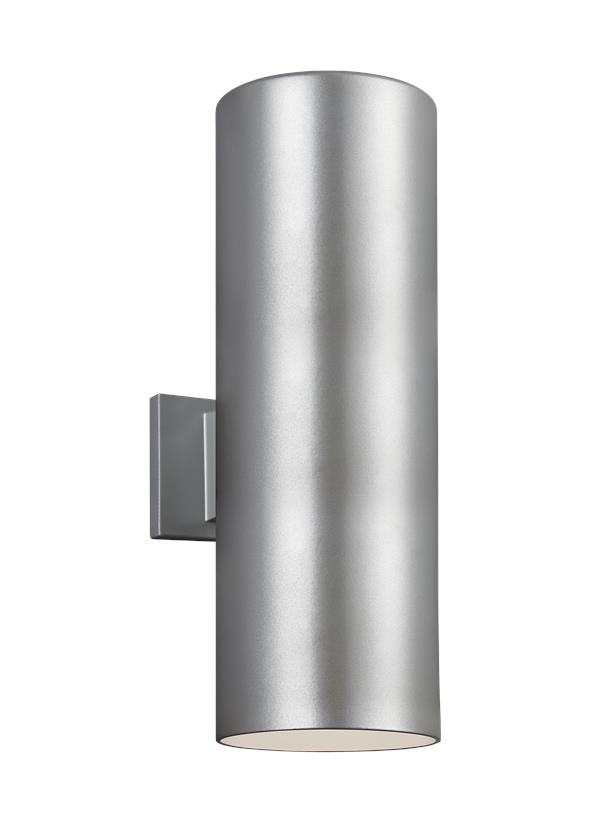

8313902-753: Large Two Light Outdoor Wall Lantern


Collection:  Outdoor Cylinders

Supplied with 6-inches of wire

For an eco-friendly lighting design, convert to LED bulbs to offer savings and reduce energy

Designed for damp and wet environments allowing for direct water contact

1-year manufacturer warranty

Meets Title 24 energy efficiency standards

UPC #:785652274107

Finish:   Painted Brushed Nickel (753)
Dimensions:

Width: 6''
Height: 18 1/4''
Weight: 4.3 lbs.
Extends: 8 3/4''
Wire: 6'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  2 - LED Medium BR40 10w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Powder coat added to the finish to protect against aging.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Aluminum - Painted Brushed Nickel
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990W8313_0_-BUL)
Trilingual (English, Spanish, and French) (8313802 8313902)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Glass Glass Tempered Glass 1     1/8   5 5/16
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 4 1/2  4 1/2  2 7/8    9 1/8  9 1/8
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8313902-753 1  785652274107  9.5 7 20 0.77 6.3 0 Yes
Master Pack 8313902-753 4  10785652274104  19.5 14.5 21 3.436 27 0 Yes
NJ Pallet   72    48 40 68.25 75.833 453.6 No
NV Pallet   72    48 40 68.25 75.833 453.6 No
