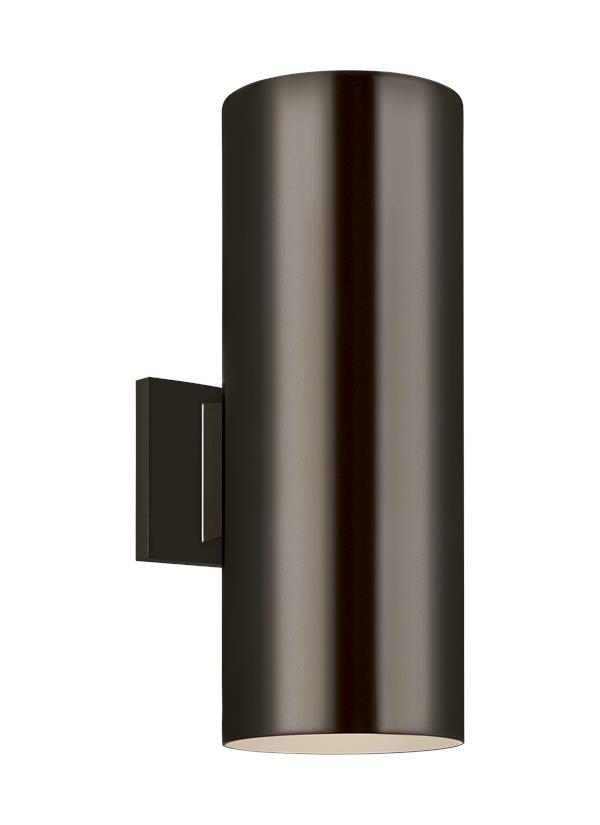

8313802-10: Small Two Light Outdoor Wall Lantern


Collection:  Outdoor Cylinders

Featured in the decorative Outdoor Cylinders collection

2 BR30 Medium 65 watt light bulbs

tempered glass panel

Easily converts to LED with optional replacement lamps

Powder coat added to the finish to protect against aging.

UPC #:785652273995

Finish:   Bronze (10)
Dimensions:

Width: 5 1/8''
Height: 14 1/4''
Weight: 2.7 lbs.
Extends: 7 7/8''
Wire: 6'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  2 - LED Medium BR30 10w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Powder coat added to the finish to protect against aging.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Aluminum - Bronze
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990W8313_0_-BUL)
Trilingual (English, Spanish, and French) (8313802 8313902)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Panel Glass Tempered Glass 1     1/8   4 1/2
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 4 1/2  4 1/2  2 7/8    7 1/8  7 1/8
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8313802-10 1  785652273995  16.25 6.25 9 0.529 3.9 0 Yes
Master Pack 8313802-10 6  10785652273992  19.5 18.38 17.5 3.63 25.9 0 Yes
NJ Pallet   96    48 40 77 85.556 414.4 No
NV Pallet   96    48 40 77 85.556 414.4 No
