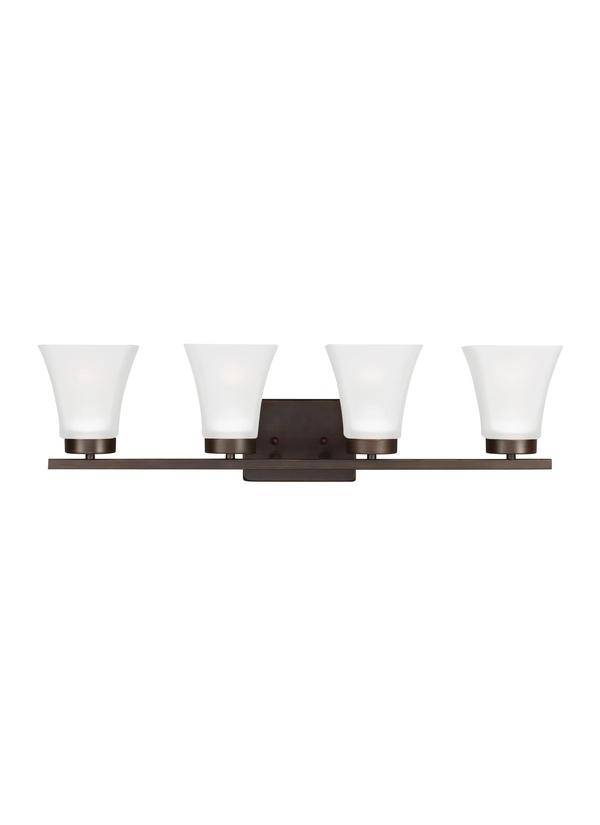

4411604-710: Four Light Wall / Bath



Collection:  Bayfield


Featured in the decorative Bayfield collection

4 A19 Medium 100 watt light bulbs

Satin Etched glass shades

Easily converts to LED with optional replacement lamps

Fixture may be mounted in the up or down position

UPC #:785652273650

Finish:   Bronze (710)

Dimensions:

Width: 27 1/2''
Height: 7 3/4''
Weight: 7.8 lbs.
Extends: 6 5/8''
Wire: 6'' (color/Black/White)
Mounting Proc.: Wall / Bath
Connection: Mounted To Box
Bulbs:
  4 - Medium A19 100w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Fixture may be mounted in the up or down position
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Bronze
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (4411602 4411603 4411604)
Trilingual (English, Spanish, and French) (990W441160_-BAY)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Glass Satin Etched 4 G560150-619 5 5 5
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 4 5/8  6 1/4  3/4    5 1/2  2 1/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4411604-710 785652273650  31 9.75 9.5 1.662 9.9 0 Yes
Master Pack 4411604-710 10785652273657
NJ Pallet   42    48 40 70 77.778 343 No
NV Pallet   42    48 40 70 77.778 343 No
