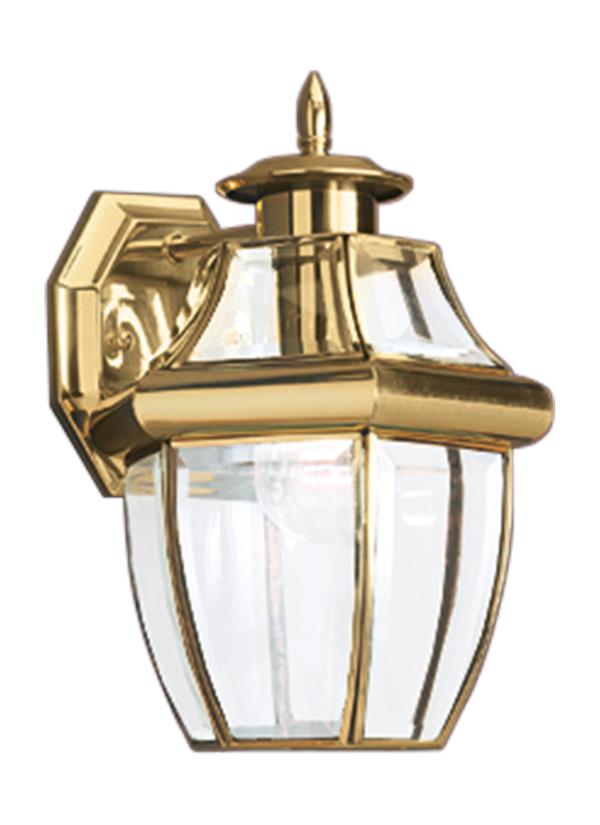

8038-02: One Light Outdoor Wall Lantern


Collection:  Lancaster

Medium Solid Brass Classic One Light Wall Lantern in Polished Brass Finish and Clear Curved Beveled Glass.

Polished Brass Outdoor Light w/ Clear Curved Beveled Glass Bound In Solid Brass

Featured in the decorative Lancaster collection

1 A19 Medium 100 watt light bulb

Clear curved beveled glass panels

Clear bulb(s) recommended for this fixture

Easily converts to LED with optional replacement lamps

UPC #:785652803826

Finish:   Polished Brass (02)
Dimensions:

Width: 7 3/4''
Height: 12''
Weight: 4 lbs.
Extends: 7 1/2''
Wire: 6 1/2''
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulb Appearance: Clear
Bulbs:
  1 - Medium A19 100w Max. 120v - Not included
Features:
  • Clear bulb(s) recommended for this fixture
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Brass - Polished Brass
Safety Listing:
  Safety Listed for Wet Locations
Safety Listed for Wet Locations
Instruction Sheets:
English (HC-231)
French (F-009)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Clear Curved Beveled 1       8 3/4 7 3/4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 5 9/16  4 11/16  5/8    4 1/2  7 1/2
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8038-02 1  785652803826  10.5 10.25 14 0.872 4.9 0 Yes
Master Pack 8038-02 0  10785652803823
NJ Pallet   70    48 40 72 80 343 No
NV Pallet   70    48 40 72 80 343 No
