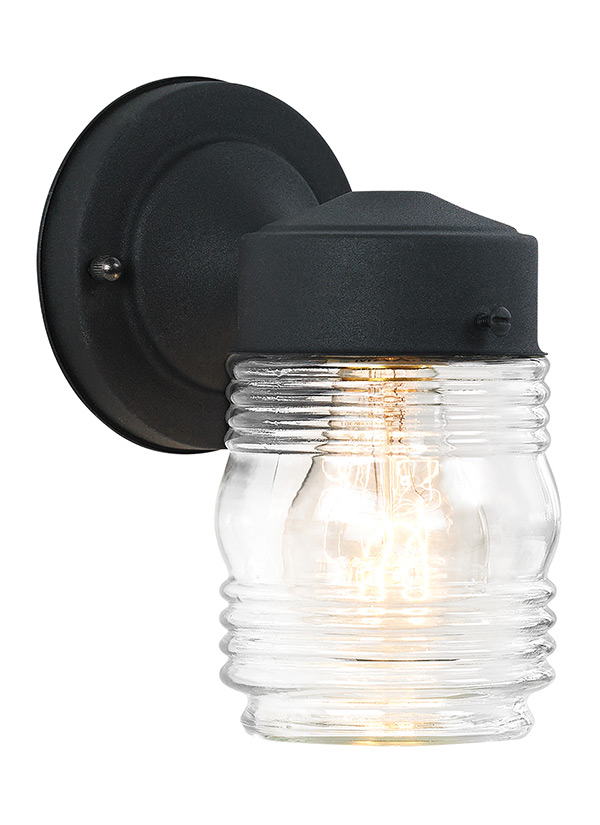

8550-12: One Light Outdoor Wall Lantern

	Collection: Outdoor Wall
	Small outdoor wall lantern in Black finish and Clear Ribbed glass.
	Black Steel Outdoor Light w/ Clear Glass.
	Supplied with 6.5-inches of wire
	For an eco-friendly lighting design, convert to LED bulbs to offer savings and reduce energy
	Designed for damp and wet environments allowing for direct water contact
	1-year manufacturer warranty
	Meets Title 24 energy efficiency standards
	UPC #:785652855023
	Finish: Black (12)

Dimensions:


Width:	4 1/2''
Height:	7 1/2''

Weight:

1.1 lbs.

Extends:

5 3/4''

Wire:

6 1/2'' (color/Black/White)

Mounting Proc.:

Cap Nuts

Connection:

Mounted To Box

Bulb Appearance:

Clear

Bulbs:

1 - Medium A19 100w Max. 120v - Not included

Features:

Clear bulb(s) recommended for this fixture
Easily converts to LED with optional replacement lamps
Meets Title 24 energy efficiency standards
Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.

Material List:

1 Body - Steel - Black

Safety Listing:

Safety Listed for Wet Locations

Instruction Sheets:

French (F-009)
Trilingual (English, Spanish, and French) (8550)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Diffuser

Glass

Clear

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Back Plate			2 1/4	4 1/2	2 1/4	5 1/4

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	8550-12	1	785652855023	5.5	6.5	10.25	0.212	1.45	0	Yes
Master Pack		12	10785652855020	15	13.25	16.25	1.869	17.85	0	Yes
NJ Pallet		288		48	40	65	72.222	428		No
NV Pallet		336		48	40	71	78.889	504		No
