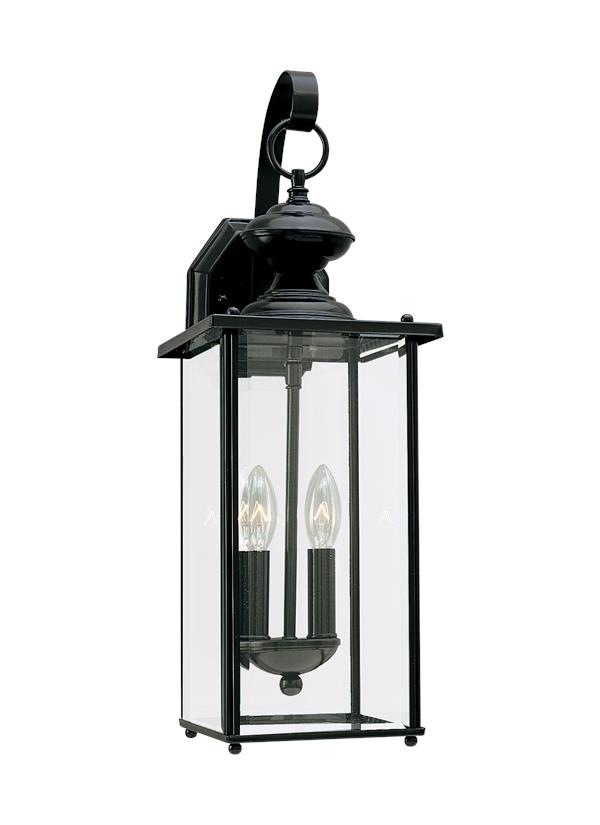

8468-12: Two Light Outdoor Wall Lantern


Collection:  Jamestowne

Outdoor Wall Lantern in Black with Clear Beveled Glass. Long Simplistic Style.

Outdoor wall lantern in black finish over solid brass with clear beveled glass.

Supplied with 6.5-inches of wire

For an eco-friendly lighting design, convert to LED bulbs to offer savings and reduce energy

Designed for damp and wet environments allowing for direct water contact

1-year manufacturer warranty

Meets Title 24 energy efficiency standards

UPC #:785652084683

Finish:   Black (12)
Dimensions:

Width: 7''
Height: 20 1/4''
Weight: 6.56 lbs.
Extends: 7 3/4''
Wire: 6 1/2''
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulb Appearance: Clear
Bulbs:
  2 - Candelabra Torpedo 40w Max. 120v - Not included
Features:
  • Clear bulb(s) recommended for this fixture
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Aluminum - Black
1 Canopy - Aluminum - Black
1 Bracket - Aluminum - Black
1 Candle Cover - Aluminum - Black
Safety Listing:
  Safety Listed for Wet Locations
Safety Listed for Wet Locations
Instruction Sheets:
English (HC-231)
French (F-009)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Panel Glass Clear Beveled 4   11 15/16 5 7/16
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 5 1/2  4 3/4  3/4    6 1/2  13 3/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8468-12 1  785652084683  8.75 8.25 21.5 0.898 8.4 0 Yes
Master Pack 8468-12 0  10785652084680
NJ Pallet   72    48 40 71.75 79.722 604.8 No
NV Pallet   72    48 40 71.75 79.722 604.8 No
