8463D-44: One Light Outdoor Wall Lantern


Collections: Chatham (Primary)
Dark Sky


Neighbor friendly, Dark Sky Qualified outdoor wall lantern finished in weathered copper finish over solid brass with clear seeded glass. Specially designed socket placement and reflector provide glare-free illumination and enhanced light cut off.

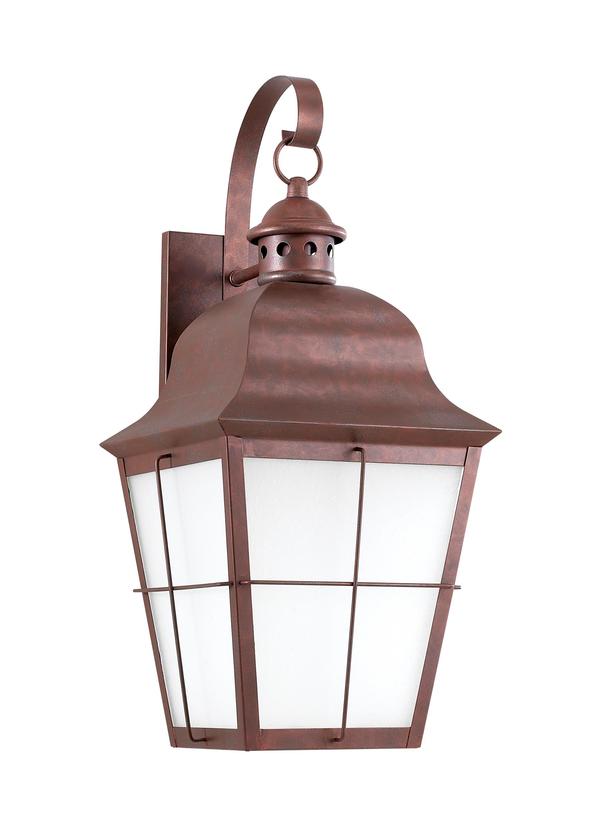

Weathered Copper Finished Dark Sky One Light Outdoor Wall Lantern with Clear Seeded Glass and Interior Aluminum Panels.

Ref #: 8463-44

Featured in the decorative Chatham collection

1 A19 Medium 100 watt light bulb

Clear seeded glass panels and white aluminum panels

Dark sky friendly. Designed to emit no light above the 90° horizontal plane. Photometry unavailable.

Easily converts to LED with optional replacement lamps

UPC #:785652084638

Finish:   Weathered Copper (44)
Dimensions:

Width: 9 1/4''
Height: 21''
Weight: 6.7 lbs.
Extends: 10''
Wire: 6 1/2''
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 100w Max. 120v - Not included
Features:
  • Dark Sky friendly. Designed to emit no light above the 90° horizontal plane. Photometry unavailable.
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Brass - Weathered Copper
1 Housing - Glass - Clear Seeded
Safety Listing:
  Safety Listed for Wet Locations
Safety Listed for Wet Locations
Instruction Sheets:
English (HC-231)
French (F-009)
Trilingual (English, Spanish, and French) (8463)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Panel Glass Clear Seeded 4
Panel Aluminum White 4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 8  4 3/4  5/8    8 1/2  12 1/2
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8463D-44 1  785652084638  13.75 13.5 24.12 2.591 10.65 0 Yes
Master Pack 8463D-44 0  10785652084635
NJ Pallet   30    48 40 77 85.556 319.5 No
NV Pallet   27    48 40 77 85.556 287.55 No
