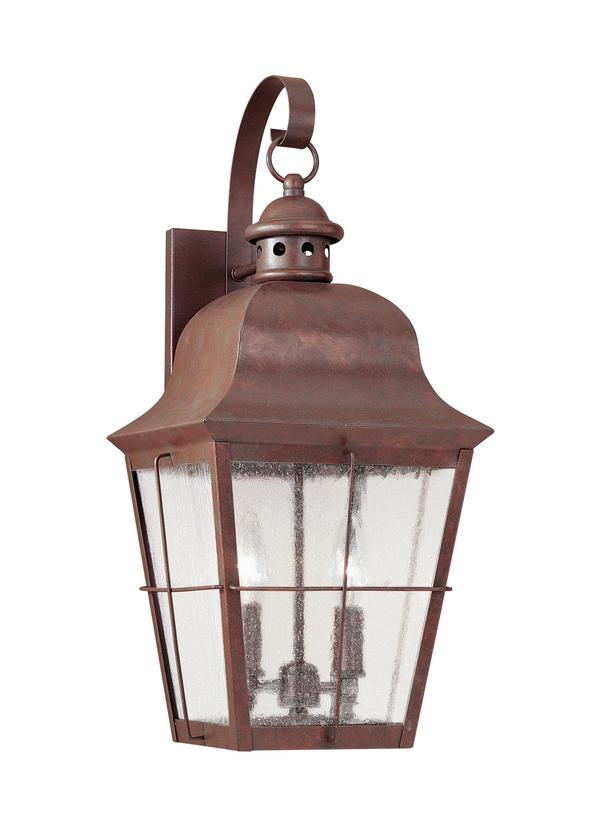

8463-44: Two Light Outdoor Wall Lantern



Collection:  Chatham

Weathered Copper Outdoor Wall Lantern with Clear Seeded Glass. Colonial Style. Generously Proportioned.

Classic, colonial lantern design with seeded glass panes in weathered copper finish over solid brass.

Featured in the decorative Chatham collection

2 Torpedo Candelabra 40 watt light bulbs

Clear seeded glass panels

Clear bulb(s) recommended for this fixture

Easily converts to LED with optional replacement lamps

UPC #:785652846342

Finish:   Weathered Copper (44)
Dimensions:

Width: 9 1/4''
Height: 21''
Weight: 5.3 lbs.
Extends: 10''
Wire: 6 1/2''
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulb Appearance: Clear
Bulbs:
  2 - Candelabra Torpedo 40w Max. 120v - Not included
Features:
  • Clear bulb(s) recommended for this fixture
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Brass - Weathered Copper
1 Housing - Glass - Clear Seeded
1 Canopy - Brass - Weathered Copper
1 Bracket - Brass - Weathered Copper
1 Arms - Brass - Weathered Copper
1 Candle Cover - Brass - Weathered Copper
Safety Listing:
  Safety Listed for Wet Locations
Safety Listed for Wet Locations
Instruction Sheets:
English (HC-231)
French (F-009)
Trilingual (English, Spanish, and French) (8463)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Panel Glass Clear Seeded 4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 8  4 3/4  5/8    8 1/2  12 1/2
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8463-44 1  785652846342  24.25 14.25 13.25 2.65 9.5 0 Yes
Master Pack 8463-44 0  10785652846349
NJ Pallet   30    48 40 75 83.333 285 No
NV Pallet   25    48 40 65.3 72.556 316.25 No
