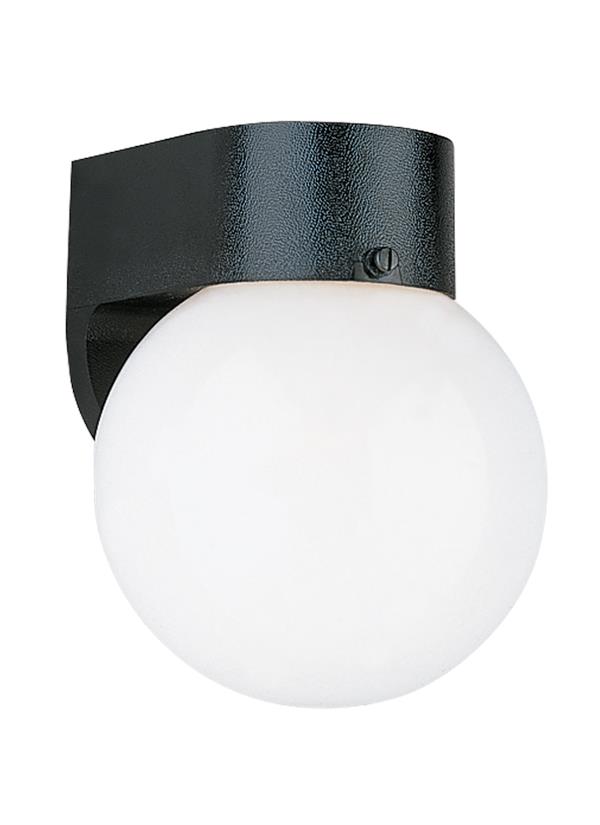

8753-34: One Light Outdoor Wall Lantern


Collection:  Outdoor Wall

Black Polycarbonate and White Glass Outdoor Lantern Globe.

Single Light Outdoor Wall Lantern with Black Polycarbonate finish and White Glass globe.

Featured in the decorative Outdoor Wall collection

1 A19 Medium 60 watt light bulb

white glass diffuser

Easily converts to LED with optional replacement lamps

Meets Title 24 energy efficiency standards

UPC #:785652875335

Finish:   Black (12)
Dimensions:

Width: 6''
Height: 7 1/4''
Weight: 1.1 lbs.
Extends: 7''
Wire: 6 1/2''
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 60w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Polycarbonate - Black
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990W8301-875_)
Trilingual (English, Spanish, and French) (8753)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Diffuser Glass White 1         6
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 4 3/4  4 1/2  5 1/2    2 1/4  5
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8753-34 1  785652875335  10.25 7.25 7.25 0.312 1.5 0 Yes
Master Pack 8753-34 12  10785652875332  24.25 15.5 21.25 4.622 19.45 0 Yes
NJ Pallet   180    48 40 69.25 76.944 306 No
NV Pallet   144    48 40 78 86.667 216 No
