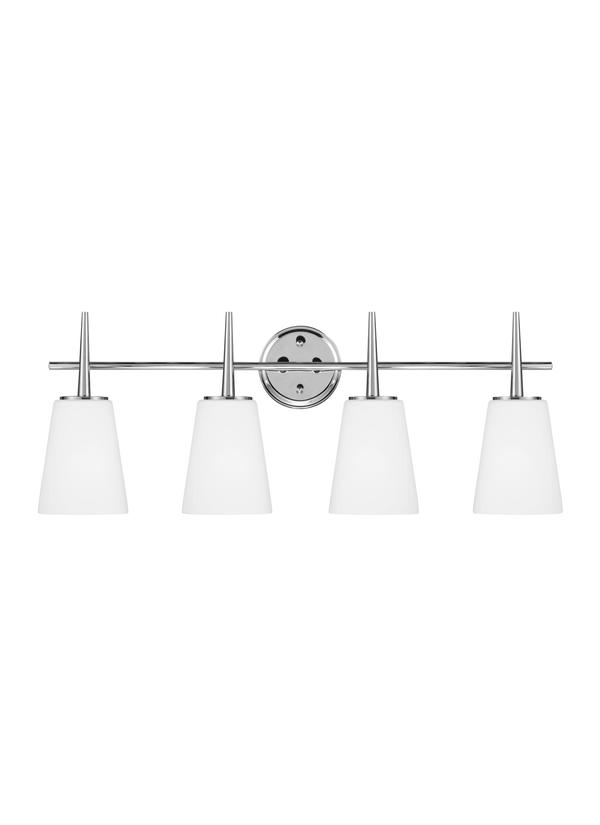

4440404-05: Four Light Wall / Bath



Collection:  Driscoll


Featured in the decorative Driscoll collection

4 A19 Medium 100 watt light bulbs

cased opal Etched glass

Easily converts to LED with optional replacement lamps

Fixture may be mounted in the up or down position

UPC #:785652239809

Finish:   Chrome (05)

Dimensions:

Width: 30 3/4''
Height: 12''
Weight: 8 lbs.
Extends: 7''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  4 - Medium A19 100w Max. 120v - Not included
Features:
  • This fixture features mouth-blown glass and slight variations are an inherent part of the handcrafting process.
  • Easily converts to LED with optional replacement lamps
  • Fixture may be mounted in the up or down position
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Chrome
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (4-4040)
Trilingual (English, Spanish, and French) (4140401 4440402 4440403 4440404)
Trilingual (English, Spanish, and French) (990W4_4040_-DRI)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Glass Glass Cased Opal Etched 4 G560111-607     6 1/2 5 1/16       3 11/16
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate     8 3/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4440404-05 785652239809  32.5 12.4 9.5 2.216 10.6 0 Yes
Master Pack 4440404-05 10785652239806
NJ Pallet   28    48 40 71.5 79.444 296.8 No
NV Pallet   30    48 40 78.25 86.944 285 No
