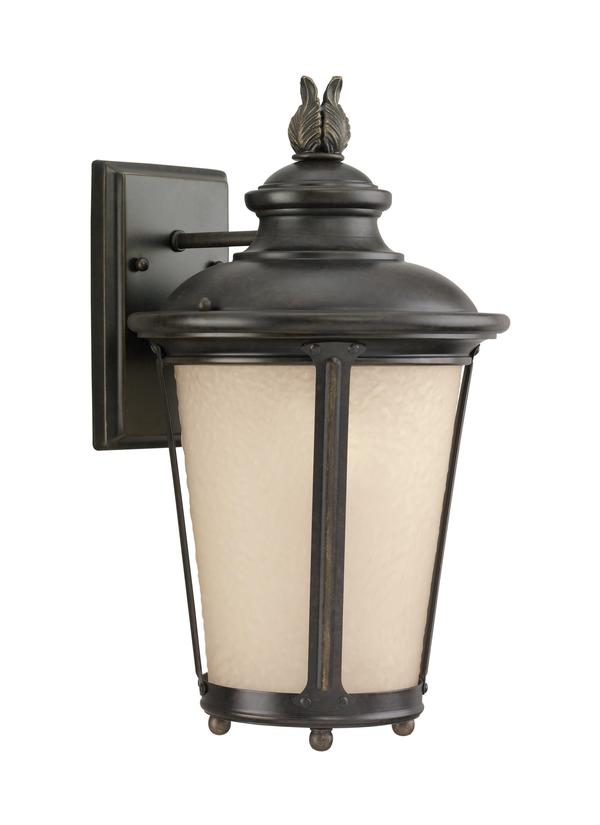

88241-780: Medium One Light Outdoor Wall Lantern

	Collection: Cape May
	One Light Wall Lantern in Burled Iron Finish with Etched Hammered with Light Amber Glass Shade
	Featured in the decorative Cape May collection
	1 A19 Medium 100 watt light bulb
	Etched hammered with light amber glass diffuser
	Easily converts to LED with optional replacement lamps
	Meets Title 24 energy efficiency standards
	UPC #:785652882487
	Finish: Burled Iron (780)

Dimensions:


Width:	9''
Height:	15 1/2''

Weight:

3.6 lbs.

Extends:

10''

Wire:

6 1/2''

Mounting Proc.:

Cap Nuts

Connection:

Mounted To Box

Bulbs:

1 - Medium A19 100w Max. 120v - Not included

Features:

Easily converts to LED with optional replacement lamps
Meets Title 24 energy efficiency standards
Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.

Material List:

1 Body - Aluminum - Burled Iron

Safety Listing:

Safety Listed for Wet Locations

Instruction Sheets:

English (HC-1179)
French (F-010)
Trilingual (English, Spanish, and French) (88240 88241)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Diffuser

Glass

Etched Hammered with Light Amber

8 11/32

6 15/16

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Back Plate	7 1/16	4 1/2	1		4 1/2

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	88241-780	1	785652882487	12.5	11.25	17	1.383	5.55	0	Yes
Master Pack	88241-780	0	10785652882484
NJ Pallet		60		48	40	72	80	333		No
NV Pallet		60		48	40	72	80	333		No
