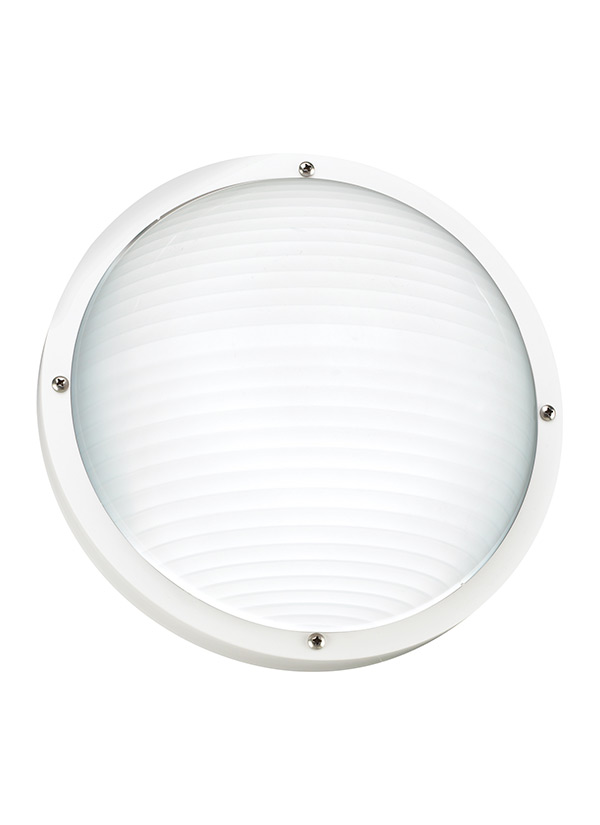

83057-15: One Light Outdoor Wall / Ceiling Mount

	Collection: Bayside
	Featured in the decorative Bayside collection
	1 A19 Medium 75 watt light bulb
	frosted ribbed polycarbonate diffuser
	Fixture may be mounted on wall or ceiling.
	Easily converts to LED with optional replacement lamps
	UPC #:785652184901
	Finish: White (15)

Dimensions:


Diameter:	10''
Height:	5''

Weight:

1.6 lbs.

Extends:

5''

Wire:

6 1/2'' (color/Black/White)

Mounting Proc.:

Cap Nuts

Connection:

Mounted To Box

Bulbs:

1 - Medium A19 75w Max. 120v - Not included

Features:

Fixture may be mounted on wall or ceiling.
Easily converts to LED with optional replacement lamps
Meets Title 24 energy efficiency standards
Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.

Material List:

1 Body - Polycarbonate - White

Safety Listing:

Safety Listed for Wet Locations
Safety Listed for Wet Locations

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Diffuser

Polycarbonate

Frosted Ribbed

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Back Plate			1 1/8	10	5

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	83057-15	1	785652184901	11.5	11.5	6.25	0.478	2	0	Yes
Master Pack	83057-15	12	10785652184908	19.25	23.25	23.5	6.087	27.3	0	Yes
NJ Pallet		144		48	40	71	78.889	327.6		No
NV Pallet		144		48	40	71	78.889	327.6		No
