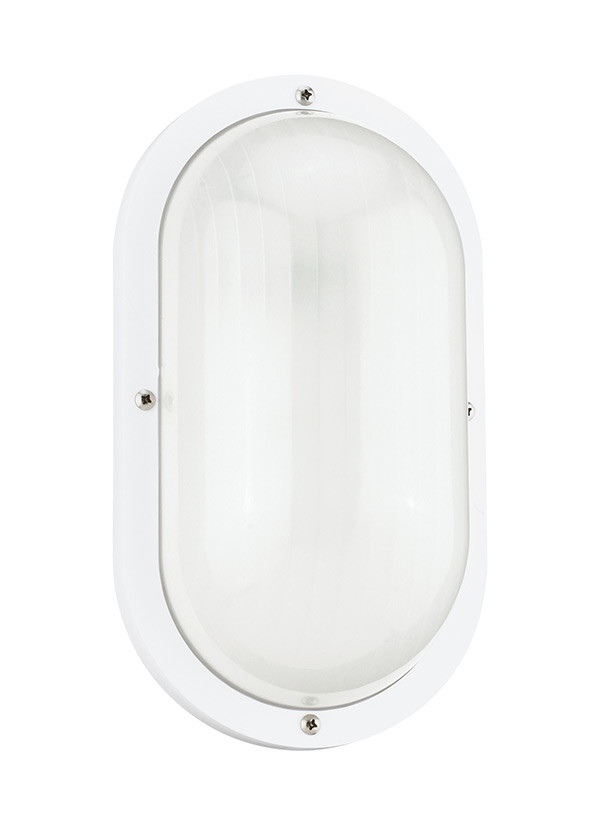

8335-15: One Light Outdoor Wall Lantern



Collection:  Bayside


Outdoor One Light Wall Fixture in White Finish with Frosted Ribbed Polycarbonate Diffuser

Featured in the decorative Bayside collection

1 A19 Medium 60 watt light bulb

frosted ribbed polycarbonate diffuser

Meets American with Disabilities Act standard extension requirements

Easily converts to LED with optional replacement lamps

UPC #:785652035579

Finish:   White (15)

Dimensions:

Width: 10''
Height: 5''
Weight: 1.2 lbs.
Extends: 3 3/4''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Single Cap Nut
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 60w Max. 120v - Not included
Features:
  • Meets American with Disabilities Act standard extension requirements
  • Easily converts to LED with optional replacement lamps
  • Fixture may be mounted horizontal or vertical
  • Fixture may be mounted in the up or down position
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Polycarbonate - White
Safety Listing:
  Safety Listed for Wet Locations
Safety Listed for Wet Locations

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Diffuser Polycarbonate Frosted Ribbed 1
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 10  1 1/8    2 1/2
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8335-15 785652035579  11.25 5.5 6.5 0.233 1.2 0 Yes
Master Pack   10785652035576  20 12 12 1.667 9.1 0 Yes
NJ Pallet   324    48 40 75.5 83.889 491.4 No
NV Pallet   324    48 40 75.5 83.889 491.4 No
