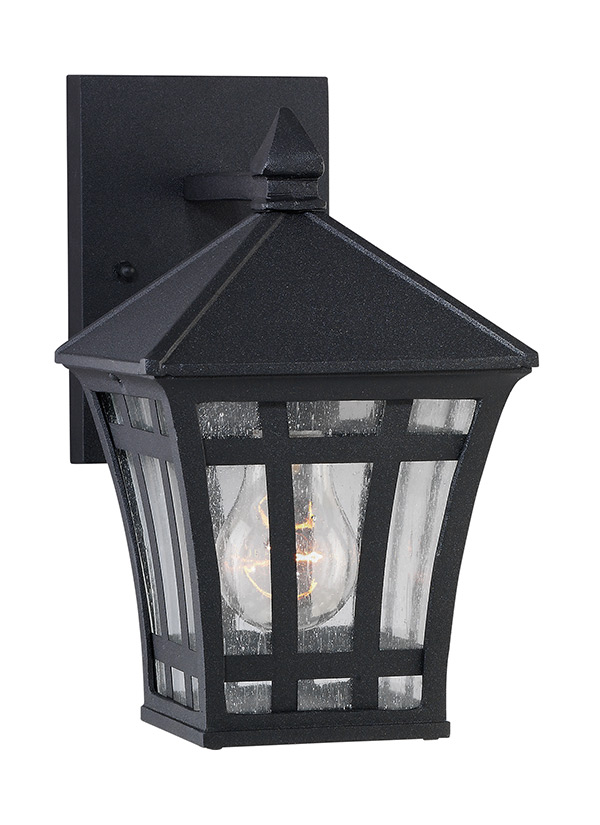

88131-12: One Light Outdoor Wall Lantern



Collection:  Herrington


One Light Outdoor Wall Lantern in Black Finish with Clear Seeded Glass.

Supplied with 6.5-inches of wire

For an eco-friendly lighting design, convert to LED bulbs to offer savings and reduce energy

Designed for damp and wet environments allowing for direct water contact

1-year manufacturer warranty

California Title 24 compliant.

UPC #:785652813108

Finish:   Black (12)

Dimensions:

Width: 6''
Height: 10''
Weight: 2.8 lbs.
Extends: 9''
Wire: 6 1/2''
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 100w Max. 120v - Not included
Features:
  • Clear bulb(s) recommended for this fixture
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Aluminum - Black
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
English (HC-1573)
French (F-010)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Panel Glass Clear Seeded 4   3 1/4 4 15/16 5 1/4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 6 5/16  4 1/4  13/16    3 1/4  6 3/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 88131-12 785652813108  11 8 12 0.611 3.5 0 Yes
Master Pack 88131-12 10785652813105
NJ Pallet   100    48 40 75 83.333 350 No
NV Pallet   120    48 40 75 83.333 420 No
