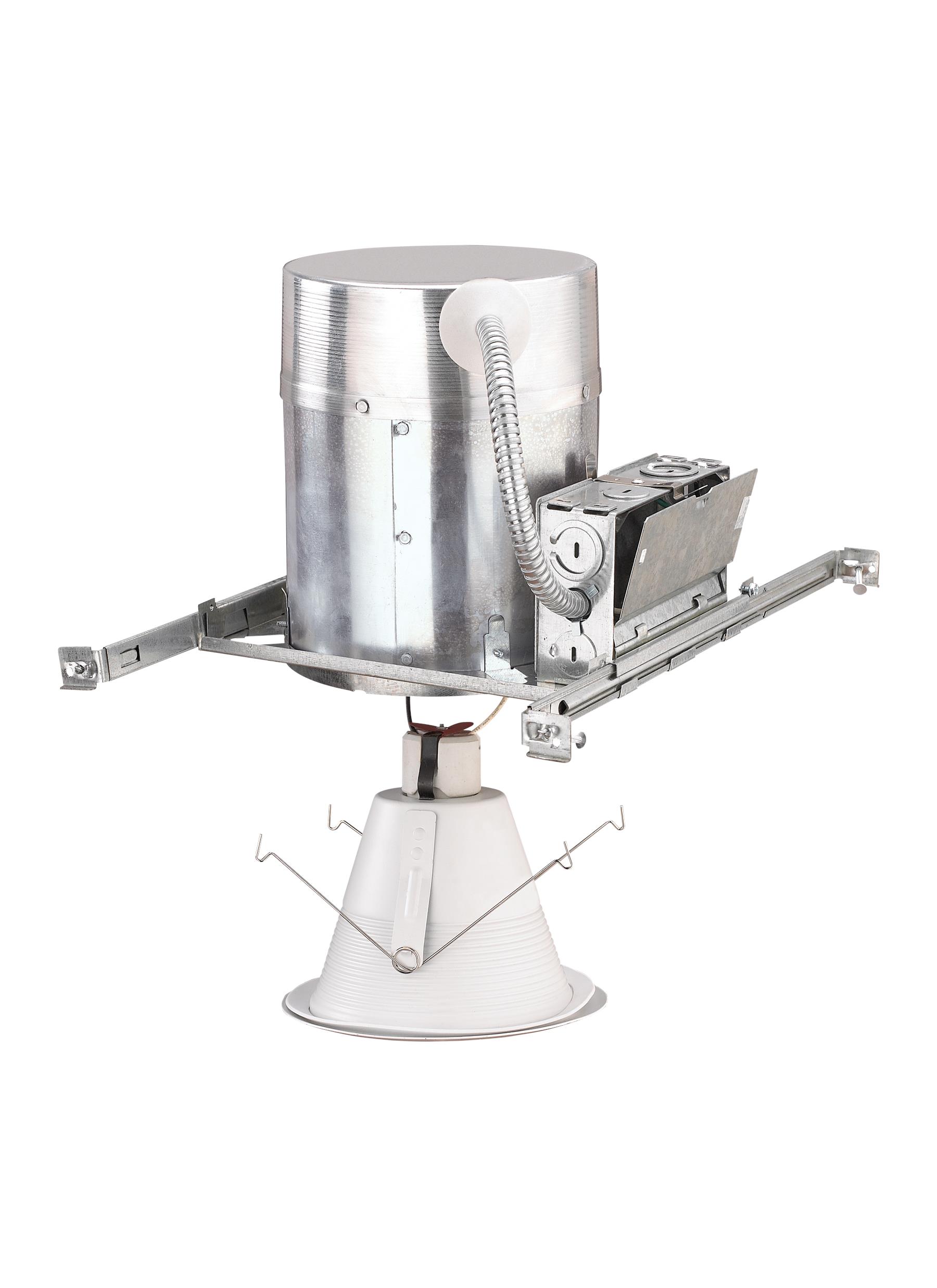

New Construction - IC Airtight 6" Housing with "Quick Connects"

Alternate Images (click below for detail view) Default Image Catalog Views: LPC Converstion To Sea Gull Catalog 2010 Full Line Catalog Recessed - March 2009	Description New Construction Airtight IC Housing with Quick Connects Specifications Product #: 11028QC MSRP: $33.55 Dimensions:  D: 6 3/8'' L: 13 1/2'' W: 10 3/4'' H: 7 7/8'' Listings:  UL Listed for Damp Locations cUL Listed for Damp Locations Wish List   Compare Details IC housing is approved for use in direct contact with insulation Housing adjusts vertically for various ceiling thicknesses Break-away bar hangers easily extend and will not fall out of plaster flange, providing sturdy installation Snap-In Socket locates lamp in optimum location No clips required. Secure bar hanger to T-Bars with wires or screws Tab to locate on bottom of joist Meets airtight requirements for 2.0 CFM or less air leakage Junction box with integral romex connector, quick push and lock connector and through circuit wiring with 4 in, 4 out #12 wire, saves installation time. The hinged junction box door allows full access for wiring while remaining attached to the recess housing Tighten screw to lock bar hangers in place Integral captive nails included and positioned for fast, easy installation One piece sealed trims. No light leaks Meets Title 24 energy efficiency standards		Detailed Specs: HTML Specification Sheet PDF Specification Sheet How to Install: Bilingual (English - French) HI-RES Downloads .jpg .png
Available Trims for 11028QC: 11020AT-15 6" Open Trim White Steel Trim Maximum Wattage: 15w LED PAR30L 15w LED BR30 75w Par30L 65w BR-30 13.5w LED A-19 11032AT-14 6" Multiplier Trim White Trim / Baffle Aluminum Trim Maximum Wattage: 90w Par38 13.5w LED A-19 50w Par30S 75w Par30 15w LED BR30 65w BR-30 90w BR-40 18w LED BR40 15w LED PAR30L 18w LED PAR38 11032AT-172 6' Multiplier Trim Antique Bronze Aluminum Aluminum Multiplier White Aluminum Trim Maximum Wattage: 90w Par38 13.5w LED A-19 50w Par30S 75w Par30 15w LED BR30 65w BR-30 90w BR-40 18w LED BR40 15w LED PAR30L 18w LED PAR38 11032AT-22 6" Multiplier Trim Polished Aluminum Aluminum Aluminum Multiplier White Aluminum Trim Maximum Wattage: 90w Par38 13.5w LED A-19 50w Par30S 75w Par30 15w LED BR30 65w BR-30 90w BR-40 18w LED BR40 15w LED PAR30L 18w LED PAR38 11032AT-71 6" Multiplier Trim Antique Bronze Aluminum Aluminum Multiplier Antique Bronze Aluminum Trim Maximum Wattage: 90w Par38 13.5w LED A-19 50w Par30S 75w Par30 15w LED BR30 65w BR-30 90w BR-40 18w LED BR40 15w LED PAR30L 18w LED PAR38 11032AT-849 6" Multiplier Trim Satin Nickel Aluminum Trim Maximum Wattage: 90w Par38 13.5w LED A-19 50w Par30S 75w Par30 15w LED BR30 65w BR-30 90w BR-40 18w LED BR40 15w LED PAR30L 18w LED PAR38 11032AT-861 6" Multiplier Trim Satin Nickel - White Aluminum Aluminum Multiplier White Aluminum Trim Maximum Wattage: 90w Par38 13.5w LED A-19 50w Par30S 75w Par30 15w LED BR30 65w BR-30 90w BR-40 18w LED BR40 15w LED PAR30L 18w LED PAR38 11033AT-15 6" Flat Glass Shower Trim Satin White Glass Diffuser White Aluminum Reflector White Aluminum Trim Maximum Wattage: 40w A-19 8w LED A-19 Suitable For Shower Light 11034AT-15 6" Drop Lens Shower Trim Satin White Glass Diffuser White Aluminum Reflector White Aluminum Trim Maximum Wattage: 40w A-19 8w LED A-19 Suitable For Shower Light 11035AT-15 6" Flat Glass Trim Satin White Glass Diffuser White Aluminum Reflector White Steel Trim Maximum Wattage: 40w A-19 8w LED A-19 Suitable For Shower Light 11037AT-15 6" Regressed Eyeball Trim White White Steel Trim Maximum Wattage: 15w LED PAR30L 15w LED BR30 75w Par30L 65w BR-30 11039AT-15 6" Wall Wash Trim White Steel Housing White Steel Trim Maximum Wattage: 40w A-19 8w LED A-19 11055AT-15 6" Fresnal Glass Shower T Clear Glass Lens White Aluminum Reflector White Aluminum Trim Maximum Wattage: 40w A-19 8w LED A-19 Suitable For Shower Light 1136AT-15 6" Eyeball Trim White White Steel Trim Maximum Wattage: 65w BR-30 13.5w LED A-19 15w LED PAR30L 15w LED BR30 75w Par30L 1151AT-14 6" Baffle Trim White Trim / Baffle Aluminum Trim Maximum Wattage: 90w Par38 13.5w LED A-19 50w Par30S 75w Par30L 15w LED BR30 65w BR-30 90w BR-40 18w LED BR40 15w LED PAR30L 18w LED PAR38 1151AT-15 6" Baffle Trim Black Aluminum Baffle White Aluminum Trim Maximum Wattage: 90w Par38 13.5w LED A-19 50w Par30S 75w Par30L 15w LED BR30 65w BR-30 90w BR-40 18w LED BR40 15w LED PAR30L 18w LED PAR38 1154AT-14 6" Open Cone Shower Trim White Trim / Baffle Aluminum Baffle White Trim / Baffle Aluminum Trim Maximum Wattage: 90w Par38 18w LED PAR38 50w Par30S 75w Par30L 15w LED BR30 13.5w LED A-19 15w LED PAR30L Suitable For Shower Light
