IC Airtight 6" Fluorescent Housing w/"Quick Connects"

Alternate Images (click below for detail view)
Recessed Lighting Collection

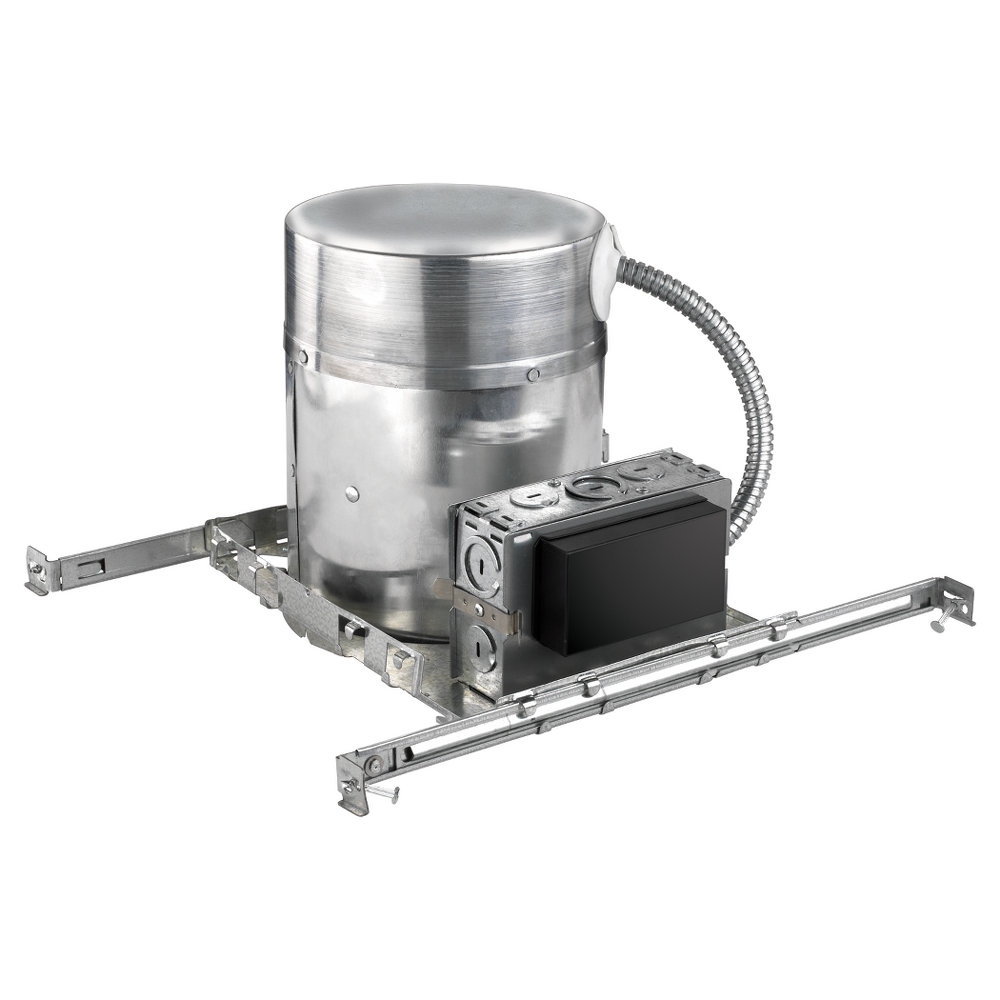

IC Airtight Fluorescent New Construction Recessed Housing with Quick Connects
Accommodates 26w Bulb
Specifications
Product #: 1180LEQC
MSRP: $125.86
Dimensions:  D: 6 1/4'' L: 13 1/2'' W: 12 5/16'' H: 7 7/8''
Listings:  UL Listed for Damp Locations
cUL Listed for Damp Locations
Warranty:  3-Year Warranty
Wish List   Compare
Details
Airtight Construction: Meets airtight requirements for 2.0 CFM or less air leakage.
Adjustable Socket Plate: Adjustable socket plate assembly provides flexibility in lamping options and precise lamp placement with various trims.
Housing Adjustment: Housing adjusts vertically for various ceiling thicknesses.
Quick Hit: Integral captive nails included and positioned for fast, easy installation.
Bar Hanger Locking Screw: Tighten scew to lock bar hangers in place.
Bar Hanger: Break-away bar hangers easily extend and will not fall out of plaster flange, providing sturdy installation.
Independently Tested Ballast: Provided with integral ballast offering years of trouble-free operation.
Junction Box with Integral Romex Connector: Junction box with integral romex connector, quick-push and lock connector and through circuit wiring with 4 in, 4 out #12 wire, saves installation time.
Safe - Thermally Protected/Listed for Damp Location: IC housing is approved for use in direct contact with insulation.
Tab to locate on bottom of joist
Offers energy saving fluorescent lighting
Meets Title 24 energy efficiency standards
Detailed Specs:
HTML Specification Sheet
PDF Specification Sheet
More Like This:
Available in Incandescent Compare
How to Install:
English

HI-RES Downloads
.jpg
.png

Available Trims for 1180LEQC:
11061AT-172
6" Deep Cone Multiplier T
Antique Bronze - White Aluminum Baffle
White Aluminum Trim
Maximum Wattage:
26w 4-Pin
11061AT-861
6" Deep Cone Multiplier T
Satin Nickel - White Aluminum Baffle
White Aluminum Trim
Maximum Wattage:
26w 4-Pin
11063AT-15
6" Wall Wash Trim
White Steel Housing
White Steel Trim
Maximum Wattage:
26w 4-Pin
11233AT-15
6" Shower Trim
Satin White Glass Diffuser
White Aluminum Reflector
White Aluminum Trim
Maximum Wattage:
26w 4-Pin
Suitable For Shower Light
11235AT-15
6" Flat Glass Trim
Steel Trim
Maximum Wattage:
26w 4-Pin
11255AT-15
6" Shower Trim
Aluminum Trim
Maximum Wattage:
26w 4-Pin
Suitable For Shower Light
1157AT-14
6" Deep Cone Baffle Trim
White Trim / Baffle Aluminum Baffle
White Trim / Baffle Aluminum Trim
Maximum Wattage:
26w 4-Pin
1157AT-15
6" Deep Cone Baffle Trim
Black Aluminum Baffle
White Aluminum Trim
Maximum Wattage:
26w 4-Pin
1160AT-14
6" Deep Cone Multiplier T
White Trim / Baffle Aluminum Reflector
White Trim / Baffle Aluminum Trim
Maximum Wattage:
26w 4-Pin
1160AT-22
6" Deep Cone Multiplier T
Polished Aluminum Aluminum Reflector
White Aluminum Trim
Maximum Wattage:
26w 4-Pin
