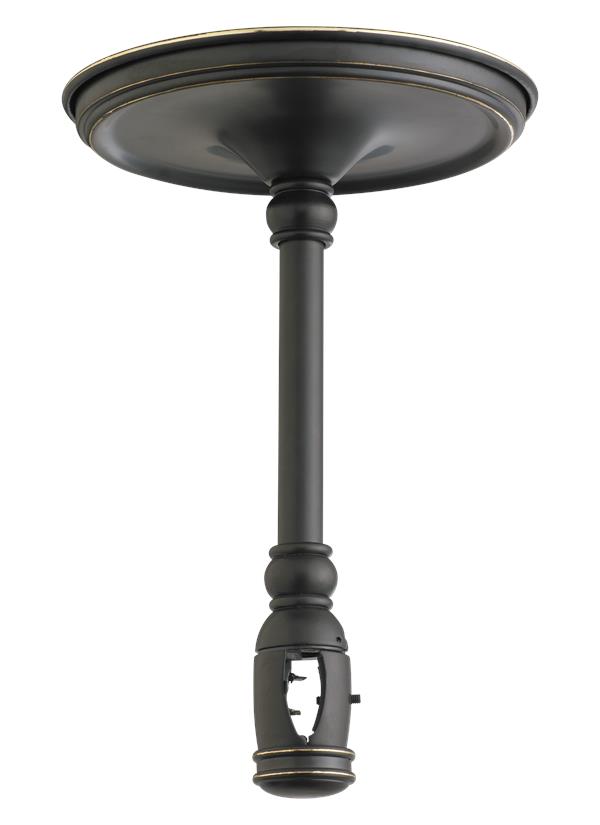

94843-71: Traditional Rail Power Feed Canopy



Collection:  Mounting Components


Traditional power feed canopy for Ambiance Transitions rail. Ceiling mount and attach at any point along the rail. Mounts to a standard 4" junction box. Single circuit with 6 foot long 12 AWG supply wire. Six and twelve inch interconnecting stem extensions are available for extending the distance of your system from the ceiling. 20 amps max at 120V.

Ref. fix. 94812

UPC #:785652096235

Finish:   Antique Bronze (71)

Dimensions:

Diameter: 5 1/8''
Height: 5 11/16''
Overall Height: 7 3/16''
Material List:
1 Power Feed - Zinc / Steel / Brass - Antique Bronze
Safety Listing:
  Safety Listed for Dry Locations
Safety Listed for Dry Locations
Instruction Sheets:
English (LR-128)
French (F-014)

Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy     5 1/8
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 94843-71 785652096235  10 5.5 6.5 0.207 1.54 125 Yes
Master Pack   10785652096232  19.75 10.25 14.25 1.669 10.34 125 Yes
NJ Pallet   240    48 40 75 83.333 413.6 No
NV Pallet   240    48 40 75 83.333 413.6 No
