40012-773: Four Light Wall / Bath



Collection:  Alexandria

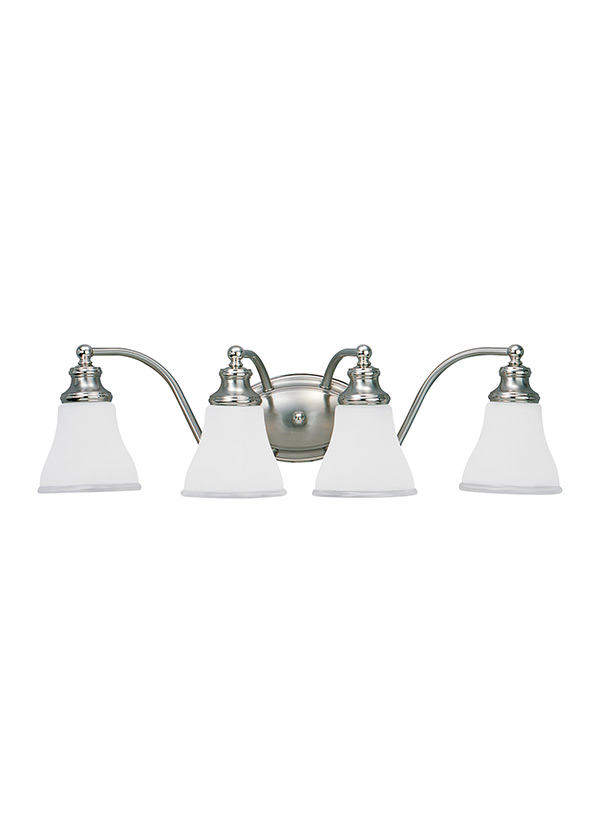

Four Light Bath Bar in Two Tone Nickel Finish with Glass Shades.

Wall/Bath fixture with two-tone nickel finish and clear highlighted etched glass.

Design #: D20078

UPC #:785652400124

Finish:   Two Tone Nickel (773)

Dimensions:

Width: 24 3/4''
Height: 7 3/4''
Weight: 7.8 lbs.
Extends: 8 1/4''
Wire: 6 1/2''
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulbs:
  4 - Medium A19 100w Max. 120v - Not included
4 - LED Medium A19 8w Max. 120v - Not included
4 - LED Medium A19 13.5w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Fixture may be mounted in the up or down position
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Two Tone Nickel
Safety Listing:
  Safety Listed for Damp Locations
Safety Listed for Damp Locations
Instruction Sheets:
English (HC-753)
French (F-007)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Glass Clear Highlighted Satin Etched 4         5 1/4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 7 1/2    3 1/2  4 1/4
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97308S Frosted     A19 E-26 Medium 8 8 120v 50000 450   3000 85
97408S Frosted     A19 E-26 Medium 8 8 120v 50000 450   2700 85
97309S Frosted     A19 E-26 Medium 13.5 13.5 120v 50000 800   3000 85
97409S Frosted     A19 E-26 Medium 13.5 13.5 120v 50000 800   2700 85
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 40012-773 785652400124  23.5 9.25 10.5 1.321 10.4 125 Yes
NJ Pallet   48    48 40 69.75 77.5 499.2 No
NV Pallet   48    48 40 69.75 77.5 499.2 No
