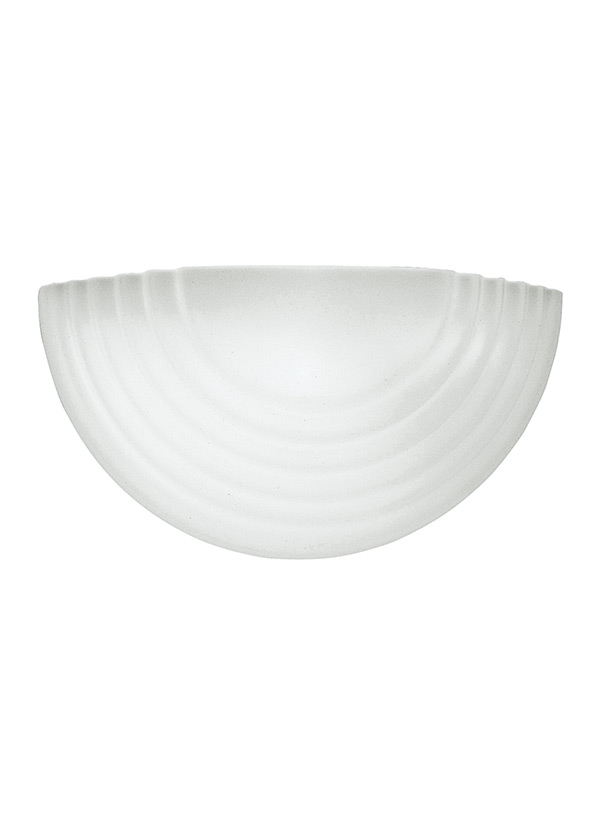

4123-15: One Light Wall / Bath Sconce


Collections: Step Glass (Primary)
Decorative Wall Sconce


Wall or Bath Fixture for Any Room Comes in White Finish and White Glass with Etched Curves for Style.

Wall or bath fixture for any room comes in white finish and glass with etched curves for style.

Featured in the decorative Wall Sconce collection

1 A19 Medium 100 watt light bulb

Satin white glass shade

Easily converts to LED with optional replacement lamps

Meets Title 24 energy efficiency standards

UPC #:785652412356

Finish:   White (15)
Dimensions:

Width: 10 3/4''
Height: 5 1/4''
Weight: 1.7 lbs.
Extends: 4 1/4''
Wire: 6 1/2''
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 100w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - White
1 Housing - Glass - Satin White
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (HC-330)
French (F-007)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Satin White 1 5226-33
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 5  10  1/4    2 1/2
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4123-15 1  785652412356  13.25 8.25 7 0.443 1.9 0 Yes
Master Pack   3  10785652412353  24.5 14 7.75 1.538 9.82 0 Yes
NJ Pallet   150    48 40 72 80 490 No
NV Pallet   150    48 40 72 80 554 No
